Ring tongue terminal for 14-16 AWG wire, featuring a copper body with tin plating and a blue vinyl insulation. This insulated terminal offers a straight orientation and a stud diameter of 0.119 inches (M2.5), with a voltage rating of 600V. Constructed from copper and silver contact materials, it operates within a temperature range of -25°C to 90°C and is RoHS compliant.
Voltage Rating600V
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 34157 technical specifications.
General
| Body Material | Copper |
| Body Plating | Tin |
| Color | Blue |
| Contact Material | Copper, Silver |
| Contact Plating | Tin |
| Depth | 6.35mm |
| Government Qualified | No |
| Heavy Duty | No |
| Insulated Wire Support | Yes |
| Insulation | Insulated |
| Insulation Diameter | 0.193inch |
| Insulation Material | Vinyl |
| Jacket Material | Vinyl |
| Lead Free | Lead Free |
| Length | 18.16mm |
| Material | Copper |
| Max Operating Temperature | 90°C |
| Min Operating Temperature | -25°C |
| Mount | Free Hanging |
| Number of Holes | 1 |
| Orientation | Straight |
| Package Quantity | 1000 |
| Packaging | Loose Piece |
| Plating | Tin |
| Plating Thickness | 2.54um |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | Plasti-Grip |
| Stud Diameter | 0.119inch |
| Stud Size | M2.5 |
| Termination | Crimp |
| Tongue Thickness | 0.79mm |
| Voltage Rating | 600V |
| Voltage Rating (AC) | 600V |
| Width | 6.35mm |
| Wire Gauge (Max) | 16AWG |
| Wire Gauge (Min) | 14AWG |
| Wire/Cable Diameter | 4.9mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 34157 Datasheet
Download the complete datasheet for TE Connectivity 34157 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

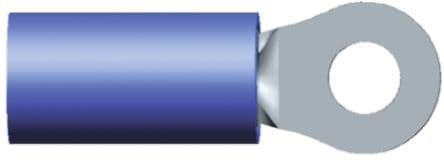

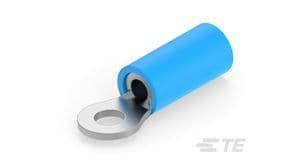

Product Images
