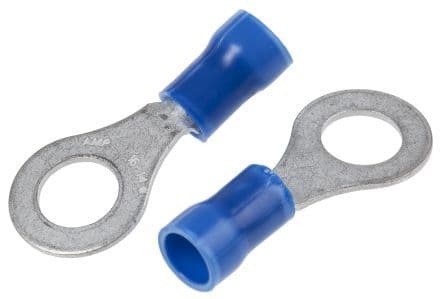

Ring tongue terminal for 14-16 AWG wire, featuring a copper body with tin plating and a blue vinyl insulation. This female, insulated terminal offers a straight orientation and free-hanging mount, designed for crimp termination. It supports insulated wire and has a voltage rating of 600V AC. The terminal measures 27.69mm in length with a 11.91mm depth and a 0.79mm tongue thickness.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 34162 technical specifications.
General
| Body Material | Copper |
| Body Plating | Tin |
| Color | Blue |
| Contact Material | Copper |
| Contact Plating | Tin |
| Depth | 11.91mm |
| Gender | Female |
| Government Qualified | No |
| Heavy Duty | No |
| Insulated Wire Support | Yes |
| Insulation | Insulated |
| Insulation Color | Blue |
| Insulation Diameter | 0.193inch |
| Insulation Material | Vinyl |
| Length | 1.09inch |
| Material | Copper, Tin, PVC |
| Mount | Free Hanging |
| Number of Holes | 1 |
| Orientation | Straight |
| Package Quantity | 1000 |
| Packaging | Loose Piece |
| Plating | Tin |
| Plating Thickness | 2.54um |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | Plasti-Grip |
| Stud Diameter | 0.265inch |
| Stud Size | M6 |
| Termination | Crimp |
| Tongue Thickness | 0.79mm |
| Voltage Rating (AC) | 600V |
| Wire Gauge (Max) | 16AWG |
| Wire Gauge (Min) | 14AWG |
| Wire/Cable Diameter | 4.9mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 34162 Datasheet
Download the complete datasheet for TE Connectivity 34162 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
