Female, insulated, straight, free-hanging terminal for 14-16 AWG wire. Features a copper body and contact with tin plating. Vinyl insulation in blue supports insulated wire and accommodates a 4.9mm wire/cable diameter. Rated for 600V AC, with an operating temperature range of -25°C to 90°C. Crimp termination with a 5mm M5 stud size.
Package197
Voltage Rating600V
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 34167 technical specifications.
General
Body Material
Copper
Body Plating
Tin
Package/Case
197
Color
Blue
Contact Material
Copper
Contact Plating
Tin
Depth
9.78mm
ELV
Compliant
Gender
Female
Government Qualified
No
Heavy Duty
No
Insulated Wire Support
Yes
Insulation
Insulated
Insulation Color
Blue
Insulation Diameter
0.193inch
Insulation Material
Vinyl
Jacket Material
Vinyl
Lead Free
Not Applicable
Length
23.37mm
Material
Copper
Max Operating Temperature
90°C
Min Operating Temperature
-25°C
Mount
Free Hanging
Orientation
Straight
Package Quantity
1000
Packaging
Loose Piece
Plating
Tin
Plating Thickness
2.54um
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
Plasti-Grip
Stud Diameter
5mm
Stud Size
M5
Terminal Material
Copper
Termination
Crimp
Tongue Thickness
0.79mm
Voltage Rating
600V
Voltage Rating (AC)
600V
Width
9.78mm
Wire Gauge (Max)
16AWG
Wire Gauge (Min)
14AWG
Wire/Cable Diameter
4.9mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 34167 Datasheet
Download the complete datasheet for TE Connectivity 34167 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

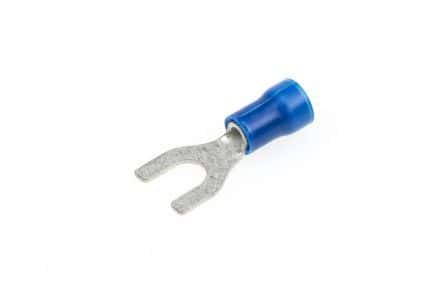

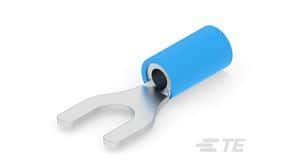

Product Images
