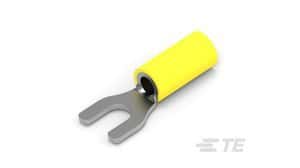

Female, insulated, straight-orientation terminal for 10-12 AWG wire. Features a copper body and contact with tin plating. Vinyl insulation in yellow supports wire diameters up to 6.35mm. Rated for 600V AC, operating temperature range of -25°C to 90°C. Crimp termination, free-hanging mount.
Package197
Voltage Rating600V
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 34176 technical specifications.
General
Body Material
Copper
Body Plating
Tin
Package/Case
197
Color
Yellow
Contact Material
Copper
Contact Plating
Tin
Depth
10.31mm
ELV
Compliant
Gender
Female
Government Qualified
No
Heavy Duty
No
Insulated Wire Support
Yes
Insulation
Insulated
Insulation Color
Yellow
Insulation Diameter
6.35mm
Insulation Material
Vinyl
Jacket Material
Vinyl
Lead Free
Not Applicable
Length
27.81mm
Material
Copper
Max Operating Temperature
90°C
Min Operating Temperature
-25°C
Mount
Free Hanging
Orientation
Straight
Package Quantity
500
Packaging
Loose Piece
Plating
Tin
Plating Thickness
2.54um
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
Plasti-Grip
Stud Diameter
5mm
Stud Size
M5
Terminal Material
Copper
Termination
Crimp
Tongue Thickness
1.02mm
Voltage Rating
600V
Voltage Rating (AC)
600V
Width
10.31mm
Wire Gauge (Max)
12AWG
Wire Gauge (Min)
10AWG
Wire/Cable Diameter
6.35mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 34176 Datasheet
Download the complete datasheet for TE Connectivity 34176 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
