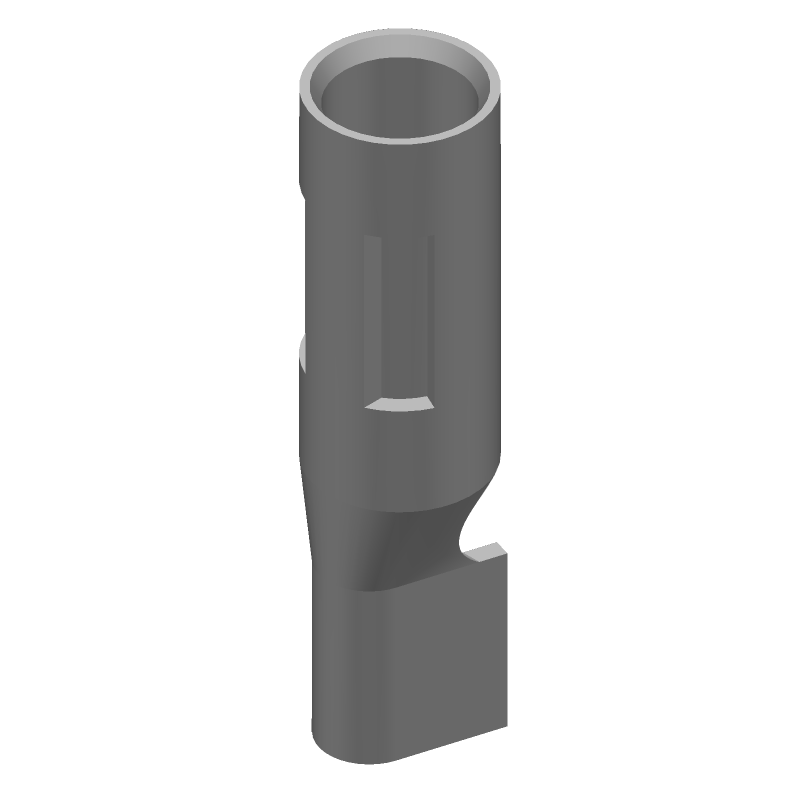

This bronze cable mount contact features a tin plating and is compliant with ELV regulations. It is designed for use with wire gauges ranging from 18 to 22 AWG and is available in quantities of 6000 per reel. The contact is not insulated and is not lead-free. It is RoHS compliant and is suitable for use in applications where a non-insulated contact is required.
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 350015-1 technical specifications.
General
| Contact Material | Bronze |
| Contact Plating | Tin |
| ELV | Compliant |
| Insulated Wire Support | No |
| Insulation | Non-Insulated |
| Lead Free | Not Applicable |
| Material | Bronze |
| Mount | Cable |
| Orientation | Straight |
| Package Quantity | 6000 |
| Packaging | Tape and Reel |
| Plating | Tin |
| RoHS Compliant | Yes |
| Shielding | Unshielded |
| Termination | Receptacle |
| Wire Gauge (Max) | 22AWG |
| Wire Gauge (Min) | 18AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 350015-1 Datasheet
Download the complete datasheet for TE Connectivity 350015-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
