2-position, wire-to-board power connector with a 5.08mm pitch. Features straight, male pin contacts with a 12A contact current rating and tin plating. This through-hole mounted connector has a 250V voltage rating and is constructed with a natural colored nylon housing. It operates within a temperature range of -67°C to 221°C and is RoHS compliant.
Voltage Rating250V
Current Rating13A
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
TE Connectivity 350209-1 technical specifications.
General
Approvals
CSA
Circuit Application
Power
Color
Natural
Connector System
Wire-to-Board
Contact Current Rating
12A
Contact Finish - Mating
TIN
Contact Gender
Male
Contact Material
Bronze, Copper Alloy, Copper, Tin
Contact Plating
Tin
Contact Retention
No (Without)
Contact Shape
Circular
Contact Style
Pin
Contact Type
Male Pin
Current Rating
13A
Flammability Rating
UL94 V-2
Height
13.38mm
Housing Color
Natural
Insulation Color
Natural
Insulation Material
Nylon
Lead Free
Lead Free
Length
8.38mm
Material
Nylon
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
221°C
Min Operating Temperature
-67°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
250.25kV
Mount
Through Hole, PCB
Number of Circuits
2
Number of Contacts
2
Number of Ports
1
Number of Positions
2
Number of Power Positions
2
Number of Rows
1
Operating Supply Voltage
250V
Orientation
Straight
Package Quantity
100
Packaging
Bag
PCB Mounting Orientation
Vertical
PCB Thickness
1.57mm
Pitch
5.08mm
Plating Thickness
2.54um
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
Commercial MATE-N-LOK
Termination
Solder
VDE Tested
No
Voltage Rating
250V
Width
9.52mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 350209-1 Datasheet
Download the complete datasheet for TE Connectivity 350209-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

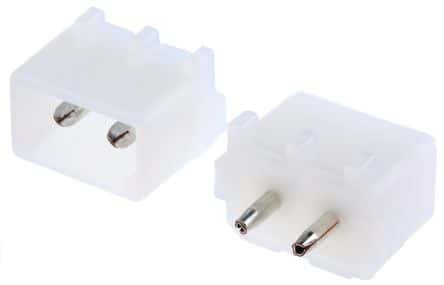

Product Images
