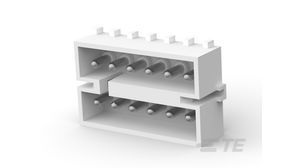

12-position, 2-row wire-to-board power connector with straight orientation. Features a 12A contact current rating and 13A overall current rating, utilizing tin-plated copper alloy male pin contacts. Through-hole PCB mount design with a 4.95mm pitch, operating within a -67°C to 221°C temperature range and rated for 250V AC/DC. UL94 V-0 flammability rating, CSA and VDE tested, and RoHS compliant.
Voltage Rating250V
Current Rating13A
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
TE Connectivity 350213-1 technical specifications.
General
| Approvals | CSA |
| Circuit Application | Power |
| Color | Natural |
| Connector System | Wire-to-Board |
| Contact Current Rating | 12A |
| Contact Gender | Male |
| Contact Material | Copper Alloy |
| Contact Plating | Tin |
| Contact Retention | No (Without) |
| Contact Type | Male Pin |
| Current Rating | 13A |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Height | 0.375inch |
| Housing Color | Natural |
| Lead Free | Lead Free |
| Length | 1.29inch |
| Mating Alignment | Yes (With) |
| Mating Retention | Yes (With) |
| Max Operating Temperature | 221°C |
| Min Operating Temperature | -67°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 250.25kV |
| Mount | Through Hole, PCB |
| Number of Circuits | 12 |
| Number of Contacts | 12 |
| Number of Ports | 1 |
| Number of Positions | 12 |
| Number of Power Positions | 12 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bag |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 1.57mm |
| Pitch | 4.95mm |
| Plating Thickness | 2.54um |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Row Spacing | 9.14inch |
| Sealable | No (Without) |
| Series | Commercial MATE-N-LOK |
| Termination | Solder |
| VDE Tested | Yes |
| Voltage Rating | 250V |
| Width | 19.94mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 350213-1 Datasheet
Download the complete datasheet for TE Connectivity 350213-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
