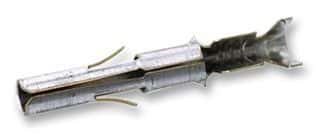

Female power contact for wire-to-wire connector systems, featuring a 19A current rating and 600V voltage rating. Designed for discrete wire termination with a crimp style, accommodating wire gauges from 20AWG to 14AWG. Constructed from bronze with nickel and gold plating, offering a maximum operating temperature of 221°C. This component is RoHS compliant and VDE tested.
Voltage Rating600V
Current Rating19A
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 350536-6 technical specifications.
General
Approvals
UL
Circuit Application
Power
Connector System
Wire-to-Wire
Contact Current Rating
19A
Contact Gender
Female
Contact Material
Bronze
Contact Plating
Nickel, Gold
Contact Type
Power
Current Rating
19A
Depth
4.19mm
ELV
Compliant
Gender
Female
Height
4.19mm
Insulation Diameter
0.13inch
Lead Free
Lead Free
Length
20.07mm
Max Operating Temperature
221°C
Min Operating Temperature
-67°C
Max Voltage Rating (AC)
600V
Mount
Cable
Number of Ports
1
Orientation
Straight
Package Quantity
5000
Packaging
Tape and Reel
Plating Thickness
1.27um
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Universal MATE-N-LOK
Termination
Crimp
Underplate Material
Nickel
VDE Tested
Yes
Voltage Rating
600V
Wire Gauge (Max)
14AWG
Wire Gauge (Min)
20AWG
Wire/Cable Gauge
14AWG
Wire/Cable Type
Discrete
Compliance
RoHS
Compliant
