Female power connector for wire-to-wire applications, featuring a straight, crimp termination and a 19A current rating. Designed for discrete wire with a gauge range of 20-14 AWG, it boasts brass contacts with nickel and gold plating for enhanced conductivity and durability. Operating within a temperature range of -67°C to 221°C, this component supports up to 600V AC and is UL and VDE tested. Packaged on tape and reel for efficient production, it is RoHS compliant.
Voltage Rating600V
Current Rating19A
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 350536-7 technical specifications.
General
| Approvals | UL |
| Circuit Application | Power |
| Connector System | Wire-to-Wire |
| Contact Current Rating | 19A |
| Contact Gender | Female |
| Contact Material | Brass |
| Contact Plating | Nickel, Gold |
| Contact Type | Power |
| Current Rating | 19A |
| Depth | 4.19mm |
| Gender | Female |
| Height | 4.19mm |
| Insulation Diameter | 0.13inch |
| Length | 20.07mm |
| Manufacturer Series | 350536-7 |
| Max Operating Temperature | 221°C |
| Min Operating Temperature | -67°C |
| Max Voltage Rating (AC) | 600V |
| Mount | Cable |
| Number of Ports | 1 |
| Orientation | Straight |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Plating Thickness | 1.27um |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Universal MATE-N-LOK |
| Termination | Crimp |
| Underplate Material | Nickel |
| VDE Tested | Yes |
| Voltage Rating | 600V |
| Wire Gauge (Max) | 14AWG |
| Wire Gauge (Min) | 20AWG |
| Wire/Cable Gauge | 14AWG |
| Wire/Cable Type | Discrete |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 350536-7 Datasheet
Download the complete datasheet for TE Connectivity 350536-7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

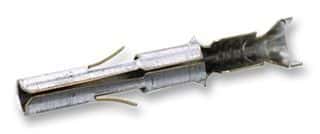

Product Images
