Universal MATE-N-LOK assembly tool for power applications. This male pin contact features a brass contact material with gold plating and a nickel underplate, rated for 19A and 600V AC. Designed for wire-to-wire connector systems, it supports discrete wire gauges from 24AWG to 18AWG with a maximum insulation diameter of 2.54mm. Operating across a temperature range of -67°C to 221°C, this component is UL and VDE tested, RoHS compliant, and supplied on tape and reel.
Voltage Rating600V
Current Rating19A
MountingCable
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the TE Connectivity 350561-2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
TE Connectivity 350561-2 technical specifications.
General
| Approvals | UL |
| Circuit Application | Power |
| Connector System | Wire-to-Wire |
| Contact Current Rating | 19A |
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Plating | Gold |
| Contact Retention | Yes (With) |
| Contact Style | Pin |
| Contact Type | Power |
| Current Rating | 19A |
| Depth | 4.19mm |
| ELV | Compliant |
| Gender | Male |
| Height | 3.68mm |
| Insulation Diameter | 2.54mm |
| Lead Free | Lead Free |
| Length | 20.32mm |
| Max Operating Temperature | 221°C |
| Min Operating Temperature | -67°C |
| Max Voltage Rating (AC) | 600V |
| Mount | Cable |
| Number of Contacts | 1 |
| Number of Ports | 1 |
| Operating Supply Voltage | 600V |
| Orientation | Straight |
| Package Quantity | 7000 |
| Packaging | Tape and Reel |
| Plating | Gold |
| Plating Thickness | 0.76um |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Universal MATE-N-LOK |
| Shielding | Unshielded |
| Termination | Crimp |
| Underplate Material | Nickel |
| VDE Tested | Yes |
| Voltage Rating | 600V |
| Wire Gauge (Max) | 18AWG |
| Wire Gauge (Min) | 24AWG |
| Wire/Cable Gauge | 18AWG |
| Wire/Cable Type | Discrete |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 350561-2 Datasheet
Download the complete datasheet for TE Connectivity 350561-2 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

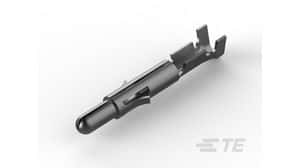

Product Images
