Power contact for wire-to-wire connector systems, featuring a male gender and straight orientation. This crimp-termination contact supports 14 AWG maximum wire gauge and is rated for 19A current and 600V AC voltage. Constructed with brass and tin plating, it operates within a temperature range of -67°C to 221°C. UL and VDE tested, this component is RoHS compliant.
Voltage Rating600V
Current Rating19A
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 350687-1 technical specifications.
General
Approvals
UL
Circuit Application
Power
Connector System
Wire-to-Wire
Contact Current Rating
19A
Contact Gender
Male
Contact Material
Brass
Contact Plating
Tin
Contact Type
Power
Current Rating
19A
Depth
4.19mm
ELV
Compliant
Gender
Male
Height
4.83mm
Insulation Diameter
0.13inch
Lead Free
Lead Free
Length
20.83mm
Max Operating Temperature
221°C
Min Operating Temperature
-67°C
Max Voltage Rating (AC)
600V
Mount
Cable
Number of Contacts
1
Number of Ports
1
Orientation
Straight
Package Quantity
5000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Universal MATE-N-LOK
Termination
Crimp
VDE Tested
Yes
Voltage Rating
600V
Wire Gauge (Max)
14AWG
Wire Gauge (Min)
20AWG
Wire/Cable Gauge
14AWG
Wire/Cable Type
Discrete
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 350687-1 Datasheet
Download the complete datasheet for TE Connectivity 350687-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

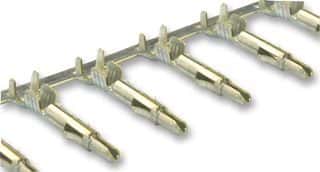

Product Images
