Female wire-to-wire connector assembly tool for 24-18 AWG discrete wire, featuring a 19A current rating and 600V voltage rating. Brass contacts with nickel and gold plating ensure reliable power circuit application. Designed for straight, unshielded, crimp termination with a maximum operating temperature of 221°C. UL and VDE tested, RoHS compliant, and lead-free.
Voltage Rating600V
Current Rating19A
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 350689-7 technical specifications.
General
Approvals
UL
Circuit Application
Power
Connector System
Wire-to-Wire
Contact Current Rating
19A
Contact Gender
Female
Contact Material
Brass
Contact Plating
Nickel, Gold
Contact Type
N/A
Current Rating
19A
Depth
3.68mm
ELV
Compliant
Gender
Female
Height
3.68mm
Insulation Diameter
2.54mm
Lead Free
Lead Free
Length
19.3mm
Max Operating Temperature
221°C
Min Operating Temperature
-67°C
Max Voltage Rating (AC)
600V
Mount
Cable
Number of Ports
1
Orientation
Straight
Package Quantity
1000
Packaging
Bag
Plating Thickness
1.27um
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Universal MATE-N-LOK
Shielding
Unshielded
Termination
Crimp
Underplate Material
Nickel
VDE Tested
Yes
Voltage Rating
600V
Wire Gauge (Max)
18AWG
Wire Gauge (Min)
24AWG
Wire/Cable Gauge
18AWG
Wire/Cable Type
Discrete
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 350689-7 Datasheet
Download the complete datasheet for TE Connectivity 350689-7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

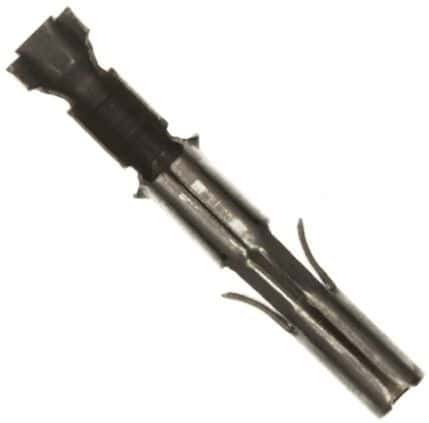

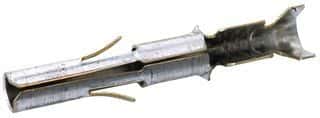

Product Images
