Universal MATE-N-LOK assembly tool for wire-to-wire power applications. Features a male, straight, crimp termination contact with a 19A current rating and tin-plated bronze material. Designed for discrete wire with a 24-18 AWG range and an insulation diameter of 2.54mm. Operates within a temperature range of -67°C to 221°C and supports up to 600V AC. UL and VDE tested, RoHS compliant.
Voltage Rating600V
Current Rating19A
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 350690-3 technical specifications.
General
Approvals
UL
Circuit Application
Power
Connector System
Wire-to-Wire
Contact Current Rating
19A
Contact Gender
Male
Contact Material
Bronze
Contact Plating
Tin
Contact Type
Power
Current Rating
19A
Depth
3.68mm
ELV
Compliant
Gender
Male
Height
3.81mm
Insulation Diameter
2.54mm
Lead Free
Lead Free
Length
20.45mm
Manufacturer Series
350690-3
Max Operating Temperature
221°C
Min Operating Temperature
-67°C
Max Voltage Rating (AC)
600V
Mount
Cable
Number of Ports
1
Orientation
Straight
Package Quantity
1000
Packaging
Bag
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
Universal MATE-N-LOK
Termination
Crimp
VDE Tested
Yes
Voltage Rating
600V
Voltage Rating (AC)
600V
Wire Gauge (Max)
18AWG
Wire Gauge (Min)
24AWG
Wire/Cable Gauge
18AWG
Wire/Cable Type
Discrete
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 350690-3 Datasheet
Download the complete datasheet for TE Connectivity 350690-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

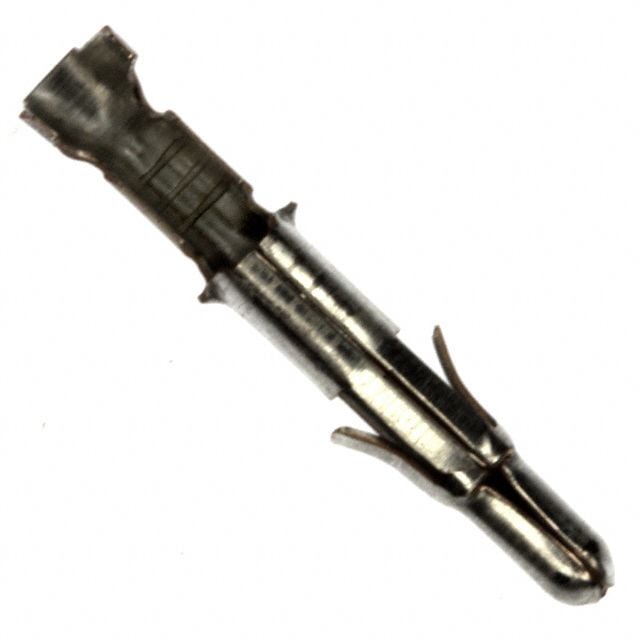

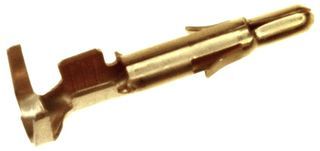

Product Images
