Male power contact for wire-to-wire connector systems, featuring a 19A current rating and 600V voltage rating. Designed for discrete wire termination with a 24-18 AWG wire gauge range. Constructed from brass with gold plating over nickel underplate for enhanced conductivity and durability. Operates across a wide temperature range from -67°C to 221°C. RoHS compliant and UL approved for reliable power applications.
Voltage Rating600V
Current Rating19A
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 350706-2 technical specifications.
General
Approvals
UL
Circuit Application
Power
Connector System
Wire-to-Wire
Contact Current Rating
19A
Contact Gender
Male
Contact Material
Brass
Contact Plating
Gold
Contact Type
Power
Current Rating
19A
Depth
3.68mm
ELV
Compliant
Gender
Male
Height
3.81mm
Insulation Diameter
2.54mm
Lead Free
Lead Free
Length
20.44mm
Max Operating Temperature
221°C
Min Operating Temperature
-67°C
Max Voltage Rating (AC)
600V
Mount
Cable
Number of Ports
1
Orientation
Straight
Package Quantity
1000
Packaging
Bag
Plating Thickness
0.76um
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
Universal MATE-N-LOK
Shielding
Unshielded
Termination
Crimp
Underplate Material
Nickel
VDE Tested
Yes
Voltage Rating
600V
Wire Gauge (Max)
18AWG
Wire Gauge (Min)
24AWG
Wire/Cable Gauge
18AWG
Wire/Cable Type
Discrete
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 350706-2 Datasheet
Download the complete datasheet for TE Connectivity 350706-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

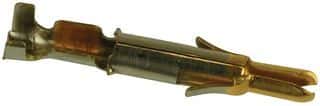

Product Images
