This male, straight, unshielded power contact is designed for wire-to-wire applications, supporting discrete wire types with a gauge range of 20-14 AWG. Featuring brass construction with tin plating, it offers a 19A current rating and a 600V voltage rating. The contact operates within a temperature range of -67°C to 221°C and is UL and VDE tested, with RoHS compliance. This assembly tool component is suitable for power circuit applications.
Voltage Rating600V
Current Rating19A
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 350707-1 technical specifications.
General
Approvals
UL
Circuit Application
Power
Connector System
Wire-to-Wire
Contact Current Rating
19A
Contact Gender
Male
Contact Material
Brass
Contact Plating
Tin
Contact Type
Power
Current Rating
19A
Depth
6.73mm
Gender
Male
Height
9.27mm
Insulation Diameter
0.2inch
Length
24.96mm
Max Operating Temperature
221°C
Min Operating Temperature
-67°C
Max Voltage Rating (AC)
600V
Mount
Cable
Number of Ports
1
Orientation
Straight
Package Quantity
1000
Packaging
Bag
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
Universal MATE-N-LOK
Shielding
Unshielded
Termination
Crimp
VDE Tested
Yes
Voltage Rating
600V
Wire Gauge (Max)
14AWG
Wire Gauge (Min)
20AWG
Wire/Cable Gauge
14AWG
Wire/Cable Type
Discrete
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 350707-1 Datasheet
Download the complete datasheet for TE Connectivity 350707-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

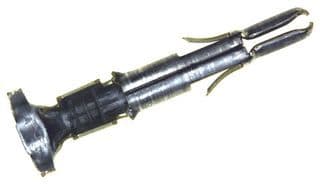

Product Images
