350714-1

Datasheet

15 Pos Power Connector, 19A, 600V, Wire-to-Board, Male Pin, Through Hole

TE Connectivity

350714-1

Name: 350714-1 TE Connectivity
Brand: TE Connectivity
SKU: 350714-1

15 Pos Power Connector, 19A, 600V, Wire-to-Board, Male Pin, Through Hole

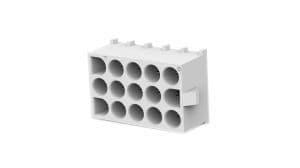

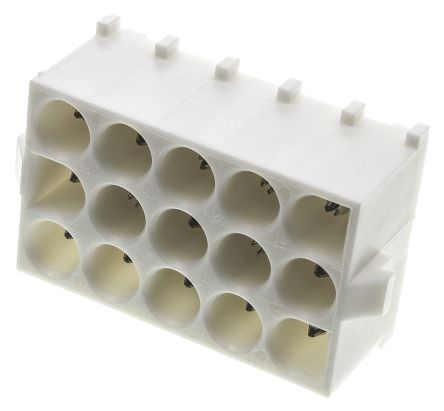

15-position, 3-row wire-to-board power connector with male pin contacts. Features a 19A current rating, 600V voltage rating, and 12A contact current rating. Constructed with tin-plated bronze male pin contacts and a natural/beige housing with UL94 V-0 flammability rating. Designed for through-hole mounting with a 6.35mm pitch and straight orientation. Includes mating alignment and retention features.

Voltage Rating600V

Current Rating19A

MountingThrough Hole

Quick Jump:

Pricing & Availability

Checking distributor stock and pricing after the page loads.

Chat with Datasheet

Technical Specifications

TE Connectivity 350714-1 technical specifications.

General

Approvals	CSA
Circuit Application	Power
Color	Natural, Beige
Connector System	Wire-to-Board
Contact Current Rating	12A
Contact Gender	Male
Contact Material	Bronze
Contact Plating	Tin
Contact Retention	No (Without)
Contact Type	Male Pin
Current Rating	19A
Depth	20.32mm
Flammability Rating	UL94 V-0
Height	14.73mm
Length	1.05inch
Mating Alignment	Yes (With)
Mating Retention	Yes (With)
Max Operating Temperature	221°C
Min Operating Temperature	-40°C
Max Voltage Rating (AC)	600V
Mount	Through Hole
Number of Contacts	15
Number of Ports	1
Number of Positions	15
Number of Power Positions	15
Number of Rows	3
Orientation	Straight
Package Quantity	50
Packaging	Bag
PCB Mount Alignment	No (Without)
PCB Mount Retention	Without
PCB Mounting Orientation	Vertical
PCB Thickness	1.57mm
Pitch	6.35mm
Plating Thickness	2.54um
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Row Spacing	0.25mm
Sealable	No (Without)
Series	Universal MATE-N-LOK
Strain Relief	No (Without)
Termination	Solder
VDE Tested	Yes
Voltage Rating	600V
Width	0.8inch
