15-position, 3-row wire-to-board connector with 6.35mm pitch. Features male pin contacts made of bronze with tin plating, rated for 12A contact current and 19A overall current. Accommodates 600V AC, with a maximum operating temperature of 221°C. Through-hole mounting with straight orientation and solder termination. UL and VDE tested, RoHS compliant, and UL94 V-0 flammability rated.
Voltage Rating600V
Current Rating19A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 350738-1 technical specifications.
General
Approvals
UL
Circuit Application
Power
Connector System
Wire-to-Board
Contact Current Rating
12A
Contact Finish - Mating
TIN
Contact Gender
Male
Contact Material
Bronze
Contact Plating
Tin
Contact Retention
No (Without)
Contact Shape
Circular
Contact Type
Male Pin
Current Rating
19A
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
Natural
Insulation Color
Natural
Insulation Material
Nylon
Lead Free
Lead Free
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
221°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
600V
Mount
Through Hole
Number of Circuits
15
Number of Contacts
15
Number of Ports
1
Number of Positions
15
Number of Power Positions
15
Number of Rows
3
Orientation
Straight
Package Quantity
50
Packaging
Bag
PCB Mount Alignment
No (Without)
PCB Mount Retention
Without
PCB Mounting Orientation
Vertical
PCB Thickness
1.57mm
Pitch
6.35mm
Plating Thickness
2.54um
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Row Spacing
0.25mm
Sealable
No (Without)
Series
Universal MATE-N-LOK
Strain Relief
No (Without)
Termination
Solder
VDE Tested
Yes
Voltage Rating
600V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 350738-1 Datasheet
Download the complete datasheet for TE Connectivity 350738-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

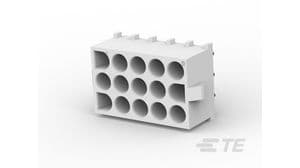

Product Images
