Rectangular connector, female socket, 4 positions, 4 circuits, 1 port, 6.35mm pitch. Features gold-plated bronze contacts with a circular shape and 4.45mm post length. Rated for 600V AC and 19A current. Straight, through-hole mount with a natural nylon housing and insulation.
Voltage Rating600V
Current Rating19A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 350761-3 technical specifications.
General
| Color | Natural |
| Contact Finish - Mating | GOLD |
| Contact Gender | Female |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Post Length | 4.45mm |
| Contact Shape | Circular |
| Contact Type | Female Socket |
| Current Rating | 19A |
| ELV | Non-Compliant |
| Flammability Rating | UL94 V-2 |
| Gender | Female |
| Housing Color | Natural |
| Insulation Color | Natural |
| Insulation Material | Nylon |
| Lead Free | Contains Lead |
| Length | 26.7mm |
| Mating Retention | Yes (With) |
| Max Voltage Rating (AC) | 600V |
| Mount | Through Hole |
| Number of Circuits | 4 |
| Number of Contacts | 4 |
| Number of Ports | 1 |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 200 |
| Packaging | Bulk |
| PCB Mount Alignment | No (Without) |
| Pitch | 6.35mm |
| RoHS Compliant | No |
| Sealable | No (Without) |
| Series | Universal MATE-N-LOK |
| Termination | Through Hole |
| Voltage Rating | 600V |
| Width | 7.62mm |
Compliance
| RoHS | Not Compliant |
Datasheet
TE Connectivity 350761-3 Datasheet
Download the complete datasheet for TE Connectivity 350761-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

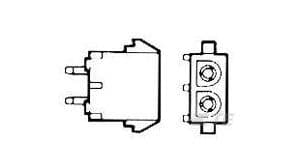

Product Images
