Power connector, 4-position, straight, wire-to-board configuration. Features a 6.35mm pitch, 12A contact current rating, and 19A overall current rating. Utilizes female socket contacts made of bronze with tin plating, suitable for solder termination. Operates within a temperature range of -40°C to 221°C and supports up to 600V AC. This unshielded, nylon-insulated receptacle is UL94 V-2 flammability rated and CSA approved.
Voltage Rating600V
Current Rating19A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 350761-4 technical specifications.
General
Approvals
CSA
Circuit Application
Power
Color
Beige, Natural
Connector System
Wire-to-Board
Contact Current Rating
12A
Contact Finish - Mating
TIN
Contact Gender
Female
Contact Material
Bronze, Tin
Contact Plating
Tin
Contact Retention
No (Without)
Contact Shape
Circular
Contact Type
Female Socket
Current Rating
19A
Depth
7.62mm
Flammability Rating
UL94 V-2
Gender
Receptacle
Height
26.67mm
Insulation Color
Natural
Insulation Material
Nylon
Length
7.62mm
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
221°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
600V
Mount
Through Hole
Number of Contacts
4
Number of Ports
1
Number of Positions
4
Number of Power Positions
4
Number of Rows
1
Orientation
Straight
Package Quantity
100
Packaging
Bag
PCB Mount Alignment
No (Without)
PCB Mount Retention
Without
PCB Mounting Orientation
Vertical
PCB Thickness
1.57mm
Pitch
6.35mm
Plating Thickness
2.54um
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
Universal MATE-N-LOK
Shielding
Unshielded
Strain Relief
No (Without)
Termination
Solder
VDE Tested
Yes
Voltage Rating
600V
Width
13.97mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 350761-4 Datasheet
Download the complete datasheet for TE Connectivity 350761-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

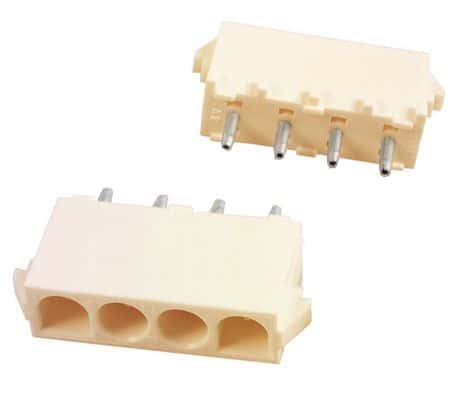

Product Images
