3-position, straight, wire-to-wire connector housing with a 6.35mm pitch, designed for cable mounting. Features male pin contacts made of tin-plated bronze, supporting a 19A current rating and 600V voltage rating. Constructed from white nylon, this housing offers a UL94 V-0 flammability rating and operates within a temperature range of -67°C to 221°C. Compliant with RoHS and CSA approvals, it accommodates wire gauges from 10AWG to 30AWG.
Voltage Rating600V
Current Rating19A
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 350766-1 technical specifications.
General
| Approvals | CSA |
| Color | White, Beige |
| Connector System | Wire-to-Wire |
| Contact Gender | Male |
| Contact Material | Bronze |
| Contact Plating | Tin |
| Contact Retention | No (Without) |
| Contact Style | Pin |
| Contact Type | Male or Female |
| Current Rating | 19A |
| Depth | 27.43mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Height | 14.73mm |
| Housing Color | White |
| Lead Free | Lead Free |
| Material | Nylon |
| Max Current Rating | 19A |
| Max Operating Temperature | 221°C |
| Min Operating Temperature | -67°C |
| Max Voltage Rating (AC) | 600V |
| Mount | Free Hanging |
| Number of Circuits | 3 |
| Number of Contacts | 3 |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Operating Supply Voltage | 600V |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pitch | 6.35mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | Universal MATE-N-LOK |
| Termination | Crimp |
| VDE Tested | Yes |
| Voltage Rating | 600V |
| DC Rated Voltage | 600V |
| Width | 14.73mm |
| Wire Gauge (Max) | 30AWG |
| Wire Gauge (Min) | 10AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 350766-1 Datasheet
Download the complete datasheet for TE Connectivity 350766-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

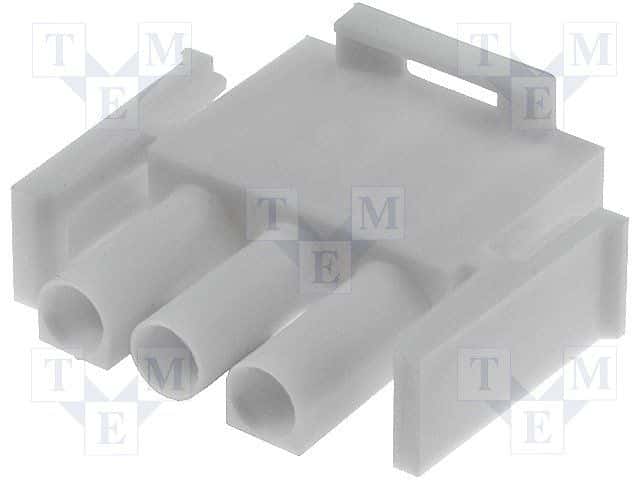

Product Images
