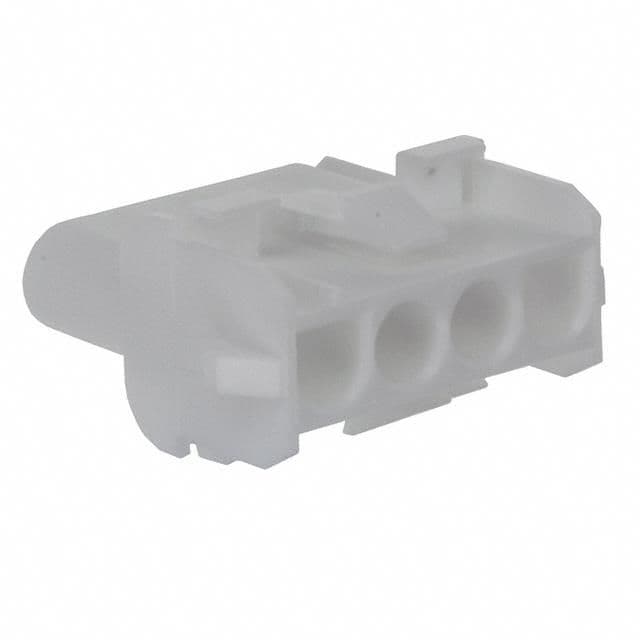

4 Pos Crimp Wire Housing, 6.35mm Pitch, 19A, 600V, Panel Mount

TE Connectivity

350780-1

Name: 350780-1 TE Connectivity
Brand: TE Connectivity
SKU: 350780-1

4 Pos Crimp Wire Housing, 6.35mm Pitch, 19A, 600V, Panel Mount

Four-position, straight, wire-to-wire receptacle housing with a 6.35mm pitch, designed for panel mounting. Features a nylon construction in white, natural, or beige, with a UL94 V-0 flammability rating and a maximum operating temperature of 221°C. This connector system supports up to 19A current rating and 600V voltage rating, utilizing female pin contacts made of bronze. It is RoHS compliant and suitable for wire gauges from 10AWG to 30AWG.

Voltage Rating600V

Current Rating19A

MountingPanel

Quick Jump:

Technical Specifications

TE Connectivity 350780-1 technical specifications.

General

Approvals	CSA
Color	Natural, White, Beige
Connector System	Wire-to-Wire
Contact Gender	Female
Contact Material	Bronze
Contact Retention	No (Without)
Contact Style	Pin
Contact Type	Male or Female
Current Rating	19A
Depth	27.43mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Receptacle
Height	1.08inch
Housing Color	White
Lead Free	Lead Free
Length	1.05inch
Material	Nylon
Max Operating Temperature	221°C
Min Operating Temperature	-67°C
Max Voltage Rating (AC)	600V
Mount	Panel
Number of Circuits	4
Number of Contacts	4
Number of Positions	4
Number of Rows	1
Number of Signal Positions	0
Operating Supply Voltage	600V
Orientation	Straight
Package Quantity	1
Packaging	Bulk
Panel Thickness	2.29mm
Pitch	6.35mm
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Sealable	No (Without)
Series	Universal MATE-N-LOK
Termination	Crimp
VDE Tested	Yes
Voltage Rating	600V
DC Rated Voltage	600V
Width	0.3inch
Wire Gauge (Max)	30AWG
Wire Gauge (Min)	10AWG
