2-position, 1-row wire-to-board connector with a 6.35mm pitch. Features male pin contacts with a circular shape and tin plating for mating. Offers a 19A current rating and 600V voltage rating, suitable for power applications. Through-hole mounting with straight orientation, constructed from nylon insulation and bronze contacts. Rated UL94 V-0 for flammability and operates within a -40°C to 221°C temperature range.
Voltage Rating600V
Current Rating19A
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
TE Connectivity 350786-1 technical specifications.
General
Approvals
CSA
Circuit Application
Power
Color
White, Beige
Connector System
Wire-to-Board
Contact Current Rating
12A
Contact Finish - Mating
TIN
Contact Gender
Male
Contact Material
Bronze
Contact Plating
Tin
Contact Retention
No (Without)
Contact Shape
Circular
Contact Style
Pin
Contact Type
Male Pin
Current Rating
19A
Depth
7.62mm
Flammability Rating
UL94 V-0
Height
14.73mm
Housing Color
White
Insulation Color
White
Insulation Material
Nylon
Lead Free
Lead Free
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
221°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
600V
Mount
Through Hole, PCB
Number of Circuits
2
Number of Contacts
2
Number of Ports
1
Number of Positions
2
Number of Power Positions
2
Number of Rows
1
Operating Supply Voltage
600V
Orientation
Straight
Package Quantity
100
Packaging
Bag
PCB Mount Alignment
No (Without)
PCB Mount Retention
Without
PCB Mounting Orientation
Vertical
PCB Thickness
1.57mm
Pitch
6.35mm
Plating Thickness
2.54um
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
Universal MATE-N-LOK
Strain Relief
No (Without)
Termination
Solder
VDE Tested
Yes
Voltage Rating
600V
DC Rated Voltage
600V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 350786-1 Datasheet
Download the complete datasheet for TE Connectivity 350786-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

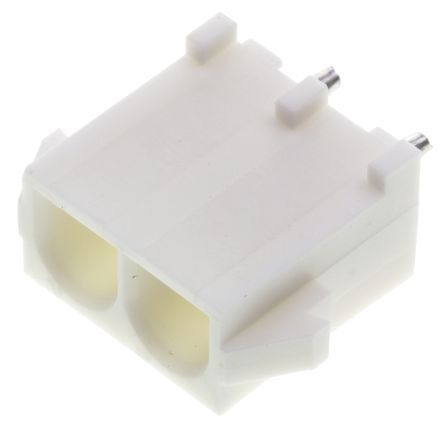

Product Images
