15-position, 3-row wire-to-board power connector with female socket contacts. Features a 12A contact current rating and a 19A overall current rating, with a maximum voltage rating of 600V AC/DC. Contacts are made of bronze with tin plating, and the nylon housing is UL94 V-0 rated. Designed for through-hole, board mounting with a 6.35mm pitch and straight orientation. Includes mating alignment and retention features.
Voltage Rating600V
Current Rating19A
MountingThrough Hole, Board
Quick Jump:
Technical Specifications
TE Connectivity 350830-1 technical specifications.
General
| Approvals | CSA |
| Body/Shell Style | SOCKET |
| Circuit Application | Power |
| Color | Beige, White |
| Connector System | Wire-to-Board |
| Contact Current Rating | 12A |
| Contact Finish - Mating | TIN |
| Contact Finish - Termination | TIN |
| Contact Gender | Female |
| Contact Material | Bronze |
| Contact Plating | Tin |
| Contact Retention | No (Without) |
| Contact Shape | Circular |
| Contact Type | Female Socket |
| Current Rating | 19A |
| Depth | 20.32mm |
| DIN Conformance | No |
| Empty Shell | No |
| Filter Feature | No |
| Flammability Rating | UL94 V-0 |
| Height | 13.97mm |
| IEC Conformance | No |
| Insulation Color | Natural |
| Insulation Material | Nylon |
| Length | 33.02mm |
| Manufacturer Series | 350830 |
| Material | Nylon |
| Mating Alignment | Yes (With) |
| Mating Retention | Yes (With) |
| Max Operating Temperature | 221°C |
| MIL Conformance | No |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 600V |
| Max Voltage Rating (DC) | 600.6kV |
| Mixed Contacts | No |
| Mount | Through Hole, Board |
| Number of Contacts | 15 |
| Number of Ports | 1 |
| Number of Positions | 15 |
| Number of Power Positions | 15 |
| Number of Rows | 3 |
| Option | General Purpose |
| Orientation | Straight |
| Package Quantity | 50 |
| Packaging | Bag |
| PCB Mount Alignment | No (Without) |
| PCB Mount Retention | Without |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 1.57mm |
| Pitch | 6.35mm |
| Plating Thickness | 2.54um |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.25mm |
| Sealable | No (Without) |
| Series | Universal MATE-N-LOK |
| Shell Material | Polyamide |
| Strain Relief | No (Without) |
| Termination | Solder |
| VDE Tested | Yes |
| Voltage Rating | 600V |
| Width | 20.32mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 350830-1 Datasheet
Download the complete datasheet for TE Connectivity 350830-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

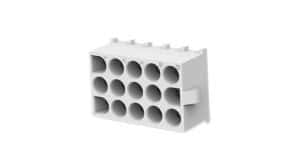

Product Images
