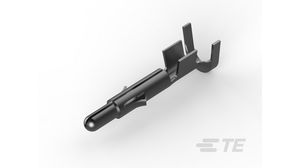

Male, straight, crimp-termination power contact for wire-to-wire connector systems. Features brass contact material with tin plating, rated for 19A and 600V AC/DC. Accommodates wire gauges from 18 to 14 AWG with an insulation diameter up to 0.2 inches. Operating temperature range is -67°C to 221°C. UL and VDE tested, RoHS compliant.
Voltage Rating600V
Current Rating19A
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 350873-1 technical specifications.
General
Approvals
UL
Circuit Application
Power
Connector System
Wire-to-Wire
Contact Current Rating
19A
Contact Gender
Male
Contact Material
Brass
Contact Plating
Tin
Contact Type
Power
Current Rating
19A
Depth
3.94mm
ELV
Compliant
Gender
Male
Height
3.35mm
Insulation Diameter
0.2inch
Lead Free
Lead Free
Length
19.81mm
Max Operating Temperature
221°C
Min Operating Temperature
-67°C
Max Voltage Rating (AC)
600V
Mount
Cable
Number of Ports
1
Orientation
Straight
Package Quantity
2500
Packaging
Tape and Reel
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
Universal MATE-N-LOK
Shielding
Unshielded
Termination
Crimp
VDE Tested
Yes
Voltage Rating
600V
Wire Gauge (Max)
14AWG
Wire Gauge (Min)
18AWG
Wire/Cable Gauge
18AWG
Wire/Cable Type
Discrete
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 350873-1 Datasheet
Download the complete datasheet for TE Connectivity 350873-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
Product Images
