Right angle male header with 110 positions across 5 rows, featuring a 2mm pitch. Bronze contacts with tin/lead plating utilize a press-fit termination style. Operating temperature range is -55°C to 125°C. UL94 V-0 flammability rating and grey housing color. Designed for through-hole and edge board mounting.
MountingThrough Hole, Edge, Board
Quick Jump:
Technical Specifications
TE Connectivity 352131-1 technical specifications.
General
| Body/Shell Style | PLUG |
| Contact Gender | Male |
| Contact Material | Bronze |
| Contact Plating | Tin, Lead |
| Contact Style | Press-Fit |
| Depth | 26.8mm |
| DIN Conformance | No |
| ELV | Non-Compliant |
| Filter Feature | No |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Grey |
| IEC Conformance | No |
| Lead Free | Not Applicable |
| Length | 43.9mm |
| Make First / Break Last | No |
| Manufacturer Series | 352131 |
| Mating Information | MULTIPLE MATING PARTS AVAILABLE |
| Max Operating Temperature | 125°C |
| MIL Conformance | No |
| Min Operating Temperature | -55°C |
| Mixed Contacts | No |
| Mount | Through Hole, Edge, Board |
| Mounting Style | RIGHT ANGLE |
| Number of Columns | 22 |
| Number of Contacts | 110 |
| Number of Positions | 110 |
| Number of Rows | 5 |
| Number of Rows Loaded | 5 |
| Option | General Purpose |
| Orientation | Right Angle |
| Package Quantity | 12 |
| Packaging | Tray |
| PCB Mounting Orientation | Right Angle |
| Pitch | 2mm |
| RoHS Compliant | No |
| Series | Z-PACK HM |
| Shielding | Unshielded |
| Termination | Solder |
Compliance
| RoHS | Not Compliant |
Datasheet
TE Connectivity 352131-1 Datasheet
Download the complete datasheet for TE Connectivity 352131-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

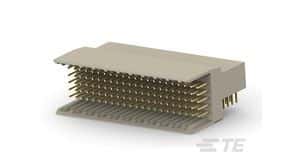

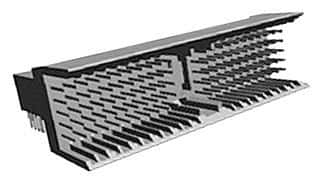

Product Images
