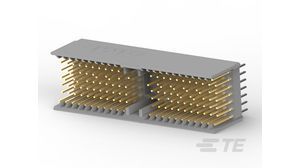

154-position, 2mm pitch male header with a straight, through-hole mounting style. Features a 1.5A current rating and 500V voltage rating, operating between -55°C and 125°C. Bronze contacts with Tin/Lead plating and a UL94 V-0 flammability rating. Shielded, grey housing with a press-fit termination.
Voltage Rating500V
Current Rating1.5A
MountingThrough Hole, Board
Quick Jump:
Technical Specifications
TE Connectivity 352332-1 technical specifications.
General
| Body/Shell Style | PLUG |
| Circuit Application | Signal |
| Contact Gender | Male |
| Contact Material | Bronze |
| Contact Plating | Tin, Lead |
| Current Rating | 1.5A |
| Depth | 15.4mm |
| DIN Conformance | No |
| ELV | Non-Compliant |
| Filter Feature | No |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Grey |
| IEC Conformance | No |
| Lead Free | Not Applicable |
| Length | 49.9mm |
| Make First / Break Last | No |
| Manufacturer Series | 352332 |
| Max Current Rating | 1.5A |
| Max Operating Temperature | 125°C |
| Max Voltage Rating (AC) | 500V |
| MIL Conformance | No |
| Min Operating Temperature | -55°C |
| Mixed Contacts | No |
| Mount | Through Hole, Board |
| Mounting Style | STRAIGHT |
| Number of Columns | 25 |
| Number of Contacts | 154 |
| Number of Positions | 154 |
| Number of Rows | 7 |
| Number of Rows Loaded | 7 |
| Option | General Purpose |
| Orientation | Straight |
| Package Quantity | 10 |
| Packaging | Rail/Tube |
| PCB Mounting Orientation | Vertical |
| Pitch | 2mm |
| Plating Thickness | 380nm |
| RoHS Compliant | No |
| Sealable | No (Without) |
| Series | Z-PACK HM |
| Shielding | Shielded |
| Termination | Press-Fit |
| Voltage Rating | 500V |
Compliance
| RoHS | Not Compliant |
