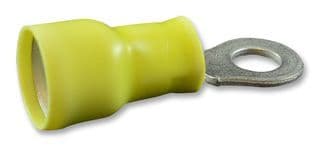

PIDG insulated ring tongue terminal for 10-12 AWG wire. Features a copper body with tin plating and a PVC insulation in yellow. Rated for 300V AC, this female terminal offers insulated wire support and a straight orientation. Designed for crimp termination, it has a stud diameter of 5mm and a tongue thickness of 0.042 inches.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 35364 technical specifications.
General
Body Material
Copper
Body Plating
Tin
Color
Yellow
Contact Material
Copper
Contact Plating
Tin
Depth
9.53mm
Gender
Female
Government Qualified
No
Heavy Duty
No
Insulated Wire Support
Yes
Insulation
Insulated
Insulation Color
Yellow
Insulation Diameter
7.62mm
Insulation Material
PVC
Length
1.17inch
Material
Copper
Mount
Free Hanging
Number of Holes
1
Orientation
Straight
Package Quantity
500
Packaging
Loose Piece
Plating
Tin
Plating Thickness
2.54um
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
PIDG
Stud Diameter
5mm
Termination
Crimp
Tongue Thickness
0.042inch
Voltage Rating (AC)
300V
Wire Gauge (Max)
10AWG
Wire Gauge (Min)
12AWG
Wire/Cable Diameter
0.3inch
Compliance
RoHS
Compliant
