353908-2

Datasheet

2 Pos Receptacle Header, Wire-to-Wire, 3A, 50V, 24-28AWG

TE Connectivity

353908-2

Name: 353908-2 TE Connectivity
Brand: TE Connectivity
SKU: 353908-2

Active

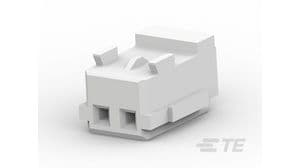

2 Pos Receptacle Header, Wire-to-Wire, 3A, 50V, 24-28AWG

2-position, 1-row wire-to-wire receptacle with female socket contacts, designed for crimp termination. Features a 0.059-inch pitch and a straight orientation, with a 3A contact current rating and 50V AC / 5.05kV DC voltage rating. Constructed from white nylon with a natural housing color, this connector offers mating alignment and retention, operating within a -22°C to 221°C temperature range. Compliant with CSA and RoHS standards, it supports wire gauges from 24AWG to 28AWG.

MountingFree Hanging

Quick Jump:

Pricing & Availability

Checking distributor stock and pricing after the page loads.

Chat with Datasheet

Technical Specifications

General

Approvals	CSA
Color	White
Connector System	Wire-to-Wire
Contact Current Rating	3A
Contact Gender	Male
Contact Type	Female Socket
Depth	6mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Receptacle
Height	6mm
Housing Color	Natural
Insulation Diameter	0.041inch
Lead Free	Not Applicable
Length	0.177inch
Material	Nylon
Mating Alignment	Yes (With)
Mating Connector Lock	No (Without)
Mating Retention	Yes (With)
Max Operating Temperature	221°C
Min Operating Temperature	-22°C
Max Voltage Rating (AC)	50V
Max Voltage Rating (DC)	5.05kV
Mount	Free Hanging
Number of Contacts	2
Number of Positions	2
Number of Rows	1
Orientation	Straight
Package Quantity	5000
Packaging	Box
PCB Mount Retention	Without
Pitch	0.059inch
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Sealable	No (Without)
Series	Mini CT
Shape	Rectangular
Strain Relief	No (Without)
Termination	Crimp
Width	0.141inch
Wire Gauge (Max)	28AWG
Wire Gauge (Min)	24AWG
Wire/Cable Gauge	28AWG
