9-position, single-row wire-to-wire connector housing with a 1.5mm pitch. Features straight orientation, free-hanging mounting, and a rectangular shape. Accommodates 24-28 AWG wire, with a 3A contact current rating and 50V AC / 5.05kV DC voltage rating. UL94 V-0 flammability rating and CSA approval.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 353908-9 technical specifications.
General
Approvals
CSA
Color
White
Connector System
Wire-to-Wire
Contact Current Rating
3A
Contact Gender
Male
Contact Type
Female Socket
Depth
6mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Female
Height
6mm
Housing Color
Natural
Insulation Diameter
0.041inch
Lead Free
Not Applicable
Length
15mm
Mating Alignment
Yes (With)
Mating Connector Lock
No (Without)
Mating Retention
Yes (With)
Max Operating Temperature
221°C
Min Operating Temperature
-22°C
Max Voltage Rating (AC)
50V
Max Voltage Rating (DC)
5.05kV
Mount
Free Hanging
Number of Contacts
9
Number of Positions
9
Number of Rows
1
Orientation
Straight
Package Quantity
2000
Packaging
Box
PCB Mount Retention
Without
Pitch
0.059inch
RoHS Compliant
Yes
Sealable
No (Without)
Series
Mini CT
Shape
Rectangular
Strain Relief
No (Without)
Termination
Crimp
Width
0.141inch
Wire Gauge (Max)
28AWG
Wire Gauge (Min)
24AWG
Wire/Cable Gauge
28AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 353908-9 Datasheet
Download the complete datasheet for TE Connectivity 353908-9 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

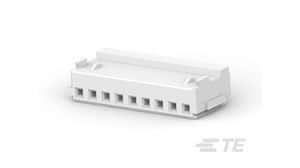

Product Images
