Female shunt connector with 2 positions and 1 row, featuring a 2.54mm pitch and straight orientation. Contacts are gold-plated bronze with a 3A current rating. The black housing is UL94 V-0 flammability rated and operates within a -65°C to 105°C temperature range. This lead-free, RoHS compliant component is suitable for solder termination.
Current Rating3A
Quick Jump:
Technical Specifications
TE Connectivity 382811-6 technical specifications.
General
| Approvals | UL, CSA |
| Color | Black |
| Contact Current Rating | 3A |
| Contact Gender | Female |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 3A |
| Depth | 2.54mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Height | 6.35mm |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 5.08mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -65°C |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 1500 |
| Packaging | Box |
| Pitch | 2.54mm |
| Plating Thickness | 0.381um |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | AMPMODU |
| Termination | Solder |
| Width | 6.35mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 382811-6 Datasheet
Download the complete datasheet for TE Connectivity 382811-6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

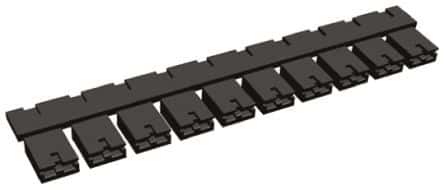

Product Images
