TE CONNECTIVITY

390088-1

Datasheet

2.54mm Pitch Female Shunt, 2 Pos, 3A, Straight, Gold Plated

TE Connectivity

390088-1

Name: 390088-1 TE Connectivity
Brand: TE Connectivity
SKU: 390088-1

2.54mm Pitch Female Shunt, 2 Pos, 3A, Straight, Gold Plated

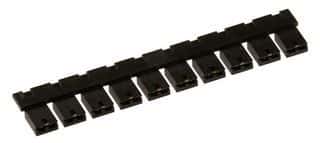

2-position, straight, female jumper shunt with a 2.54mm pitch. Features gold-plated bronze contacts rated for 3A current and 250V AC. Constructed with a black, UL94 V-0 rated housing, operating from -65°C to 105°C. This RoHS compliant component offers a compact design with dimensions of 4.98mm length, 2.44mm width, and 6.27mm height.

Voltage Rating1kV

Current Rating3A

Quick Jump:

Technical Specifications

TE Connectivity 390088-1 technical specifications.

General

Color	Black
Contact Current Rating	3A
Contact Gender	Female
Contact Material	Bronze
Contact Plating	Gold
Current Rating	3A
Depth	6.27mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Female
Height	6.27mm
Housing Color	Black
Lead Free	Lead Free
Length	4.98mm
Max Operating Temperature	105°C
Min Operating Temperature	-65°C
Number of Contacts	2
Number of Positions	2
Number of Rows	1
Orientation	Straight
Package Quantity	1500
Packaging	Box
Pitch	2.54mm
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Series	AMPMODU
Termination	Solder
Voltage Rating	1kV
Voltage Rating (AC)	250V
Width	2.44mm
