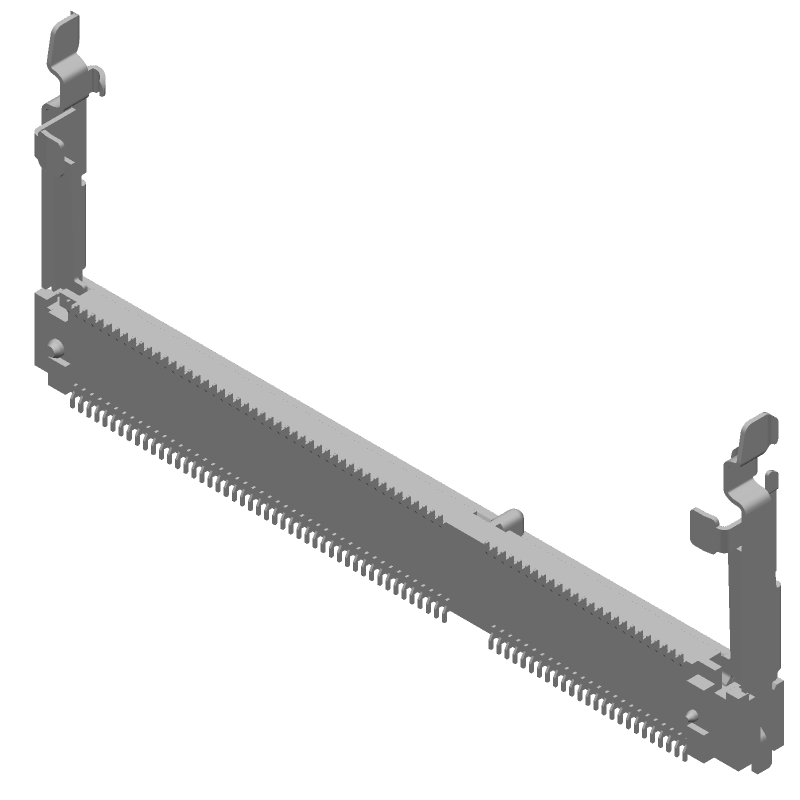

144-position, 2-row right-angle female header for signal applications. Features a 0.8mm pitch and 0.22-inch stack height, with copper alloy contacts plated in gold. Designed for cable-to-board connectivity and surface mount installation with solder termination. Constructed with UL94 V-0 rated nylon insulation and a natural housing color. Operates within a temperature range of -67°C to 221°C.
MountingSurface Mount
Quick Jump:
Technical Specifications
TE Connectivity 390111-1 technical specifications.
General
| Circuit Application | Signal |
| Connector System | Cable-to-Board |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Depth | 29.9mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Housing Color | Natural |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Length | 69.9mm |
| Max Operating Temperature | 221°C |
| Min Operating Temperature | -67°C |
| Mount | Surface Mount |
| Number of Contacts | 144 |
| Number of Positions | 144 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Package Quantity | 20 |
| Packaging | Tray |
| PCB Mount Retention | With |
| Pitch | 0.8mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.244inch |
| Sealable | No (Without) |
| Stack Height | 0.22inch |
| Termination | Solder |
