34-position, 4-row straight RF coaxial connector housing for wire-to-device applications. Features female socket contacts and a 3mm pitch with 0.157-inch row spacing. Constructed from black PBT material, this free-hanging connector operates within a -40°C to 125°C temperature range and supports a maximum voltage rating of 250V AC / 250.25kV DC. It is RoHS compliant, sealable, and designed for crimp termination with wire gauges from 16AWG to 20AWG.
MountingFree Hanging
PolarityYes
Quick Jump:
Technical Specifications
TE Connectivity 4-1437290-0 technical specifications.
General
Body Material
PBT
Color
Black
Connector System
Wire-to-Device
Contact Type
Female Socket
Depth
32.15mm
ELV
Compliant
Flammability Rating
UL94 V-2
Gender
Male
Height
34.55mm
Housing Color
Black
Hybrid Connector
No
Lead Free
Not Applicable
Length
32.15mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
250.25kV
Mount
Free Hanging
Number of Contacts
34
Number of Positions
34
Number of Rows
4
Orientation
Straight
Package Quantity
500
Packaging
Box
Pitch
0.118inch
Polarized
Yes
Primary Type
CONNECTOR
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
0.157inch
Sealable
Yes (With)
Series
Superseal
Serviceable
Yes
Strain Relief
No (Without)
Termination
Crimp
Width
1.504inch
Wire Gauge (Max)
20AWG
Wire Gauge (Min)
16AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 4-1437290-0 Datasheet
Download the complete datasheet for TE Connectivity 4-1437290-0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

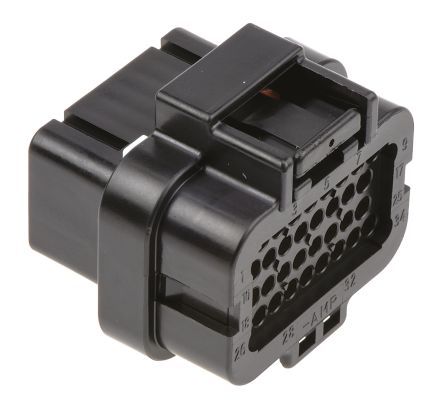

Product Images
