This 10-position, 2-row wire-to-board rectangular connector features male pin contacts with a 5A current rating and tin plating over brass. Designed for power applications, it offers a right-angle orientation for through-hole PCB mounting with a 3mm lead pitch. The black nylon housing ensures a maximum operating temperature of 221°C and meets UL94 V-0 flammability standards. It is RoHS compliant and VDE tested, with a voltage rating of 250V AC/DC.
Voltage Rating250V
Current Rating5A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 4-794618-0 technical specifications.
General
Approvals
CSA
Circuit Application
Power
Color
Black
Connector System
Wire-to-Board
Contact Current Rating
5A
Contact Finish - Mating
TIN
Contact Gender
Male
Contact Material
Brass
Contact Plating
Tin
Contact Retention
No (Without)
Contact Shape
Square
Contact Style
Pin
Contact Type
Male Pin
Current Rating
5A
Depth
11.92mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Height
11.92mm
Housing Color
Black
Insulation Color
Black
Insulation Material
Nylon
Lead Free
Lead Free
Lead Pitch
3mm
Length
19mm
Material
Nylon
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
221°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
250V
Mount
Through Hole
Number of Contacts
10
Number of Poles
10
Number of Ports
1
Number of Positions
10
Number of Power Positions
10
Number of Rows
2
Operating Supply Voltage
250V
Orientation
Right Angle
Package Quantity
195
Packaging
Tray
PCB Mount Retention
With
PCB Mounting Orientation
Right Angle
PCB Thickness
1.58mm
Pitch
0.118inch
Plating
Tin
Plating Thickness
2.54um
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
0.118mm
Sealable
No (Without)
Series
Micro MATE-N-LOK
Strain Relief
No (Without)
Termination
Solder
VDE Tested
Yes
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Width
10.88mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 4-794618-0 Datasheet
Download the complete datasheet for TE Connectivity 4-794618-0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

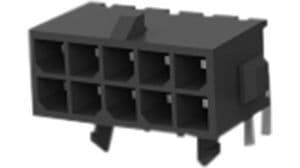

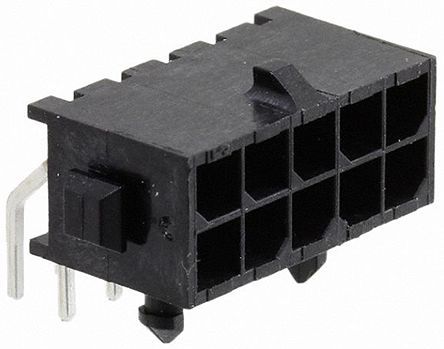

Product Images
