Female ring terminal for electrical connections, featuring a brass body and contact material, both plated with tin. Designed for crimp termination, it accommodates wire gauges from 18 to 14 AWG, with a maximum wire gauge of 13 AWG. The terminal has a stud diameter of 4.3mm, suitable for M4 studs, and a tongue thickness of 0.03 inches. It offers insulated wire support and a non-insulated design, with a maximum insulation diameter of 3.56mm. This component is RoHS compliant and supplied in a strip packaging of 11000 units.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 40724 technical specifications.
General
| Body Material | Brass |
| Body Plating | Tin |
| Contact Material | Brass |
| Contact Plating | Tin |
| Depth | 8.68mm |
| Gender | Female |
| Government Qualified | No |
| Heavy Duty | No |
| Insulated Wire Support | Yes |
| Insulation | Non-Insulated |
| Insulation Diameter | 3.56mm |
| Length | 19.91mm |
| Material | Brass |
| Mount | Free Hanging |
| Number of Holes | 1 |
| Package Quantity | 11000 |
| Packaging | Strip |
| Plating | Tin |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Stud Diameter | 4.3mm |
| Stud Size | M4 |
| Termination | Crimp |
| Tongue Thickness | 0.03inch |
| Wire Gauge (Max) | 13AWG |
| Wire Gauge (Min) | 18AWG |
| Wire/Cable Gauge | 18AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 40724 Datasheet
Download the complete datasheet for TE Connectivity 40724 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

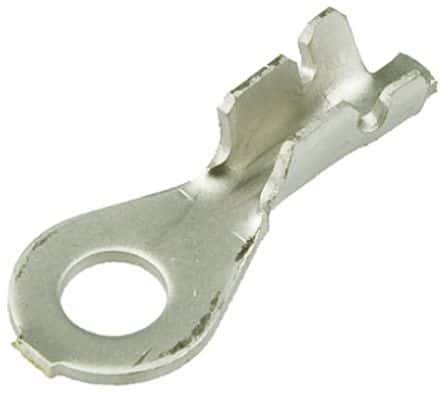

Product Images
