Female receptacle terminal for 18-22 AWG wire, featuring a straight, non-insulated brass body with unplated contact plating. This component measures 16.13mm in length and 3.81mm in depth, with a mating tab width of 0.11 inches and an insulation diameter of 2.54mm. Supplied in tape and reel packaging, this RoHS compliant terminal is designed for free-hanging mounting.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 42068 technical specifications.
General
| Body Material | Brass |
| Contact Plating | Unplated |
| Depth | 3.81mm |
| ELV | Compliant |
| Gender | Female |
| Insulation | Non-Insulated |
| Insulation Diameter | 2.54mm |
| Lead Free | Not Applicable |
| Length | 16.13mm |
| Material | Brass |
| Mating Tab Width | 0.11inch |
| Mount | Free Hanging |
| Orientation | Straight |
| Package Quantity | 15000 |
| Packaging | Tape and Reel |
| Plating | Unplated |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Faston |
| Terminal Material | Brass |
| Termination | Receptacle |
| Wire Gauge (Max) | 18AWG |
| Wire Gauge (Min) | 22AWG |
| Wire/Cable Gauge | 22AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 42068 Datasheet
Download the complete datasheet for TE Connectivity 42068 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

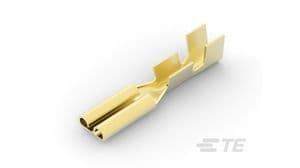

Product Images
