Female ring terminal for 16-14 AWG wire. Features brass body and contact material with tin plating. Non-insulated design with insulated wire support, straight orientation, and free-hanging mount. Termination method is crimp. Dimensions include 1.046-inch length, 0.323-inch stud diameter, and 0.18-inch insulation diameter. Packaged on tape and reel with 4000 units per package.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 42752-2 technical specifications.
General
| Body Material | Brass |
| Body Plating | Tin |
| Contact Material | Brass |
| Contact Plating | Tin |
| Depth | 11.93mm |
| ELV | Compliant |
| Gender | Female |
| Government Qualified | No |
| Heavy Duty | No |
| Insulated Wire Support | Yes |
| Insulation | Non-Insulated |
| Insulation Diameter | 0.18inch |
| Lead Free | Lead Free |
| Length | 1.046inch |
| Material | Brass |
| Mount | Free Hanging |
| Number of Holes | 1 |
| Orientation | Straight |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Plating | Tin |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Stud Diameter | 0.323inch |
| Termination | Crimp |
| Thickness | 0.76mm |
| Tongue Thickness | 0.03inch |
| Wire Gauge (Max) | 14AWG |
| Wire Gauge (Min) | 16AWG |
| Wire/Cable Diameter | 4.57mm |
| Wire/Cable Gauge | 16AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 42752-2 Datasheet
Download the complete datasheet for TE Connectivity 42752-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

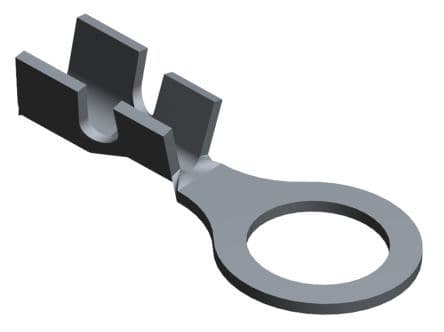

Product Images
