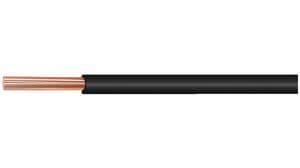

Hook-up wire, 22AWG, featuring a 19 x 34 stranding configuration with 0.031-inch tin-coated copper conductor. This unshielded wire offers a 0.047-inch outside diameter and a 1.19mm wire/cable diameter, insulated with polyalkene and jacketed with PVDF. Rated for 600VAC, it operates across a temperature range of -65°C to 150°C. The black wire is RoHS compliant and supplied in 100-foot packages.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity 44A0111-22-0 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TE Connectivity 44A0111-22-0 technical specifications.
| Package/Case | 100 |
| Color | Black |
| Conductor Diameter | 0.031inch |
| Conductor Material | Copper, Tin |
| ELV | Compliant |
| Halogen Free | Not Halogen Free |
| Insulation Material | Polyalkene |
| Jacket Material | PVDF |
| Lead Free | Not Applicable |
| Length | 1foot |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Voltage Rating (AC) | 600V |
| Mount | Cable |
| Number of Conductors | 1 |
| Number of Strands | 19 |
| Outside Diameter | 0.047inch |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 44A0111 |
| Shielding | Unshielded |
| Strand Size | 34AWG |
| Stranding | 19 x 34 |
| Test Voltage | 2.5kV |
| Voltage Rating | 600V |
| DC Rated Voltage | 600V |
| Wire/Cable Color | Black |
| Wire/Cable Diameter | 1.19mm |
| Wire/Cable Gauge | 22AWG |
| Wire/Cable Type | Spec 44 |
| RoHS | Compliant |
