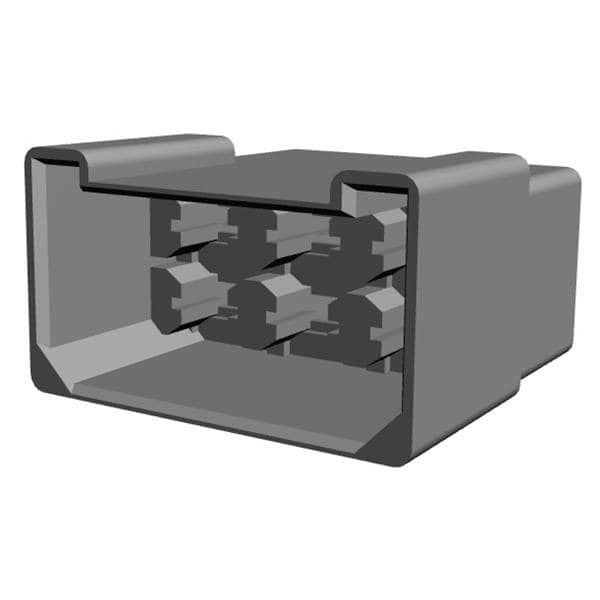

6-position, 2-row rectangular connector featuring a straight, female gender and insulated nylon construction. This general-purpose connector utilizes 6.35mm FASTIN-FASTON quick connect termination for male contacts. It is designed for free-hanging, cable mounting and boasts a UL94 V-2 flammability rating. The natural colored nylon housing ensures durability and compliance with RoHS standards.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity 480004-5 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TE Connectivity 480004-5 technical specifications.
| Additional Feature | FASTIN-FASTON |
| Body Material | Nylon |
| Color | Natural |
| Contact Gender | Male |
| Depth | 32.38mm |
| DIN Conformance | No |
| ELV | Compliant |
| Empty Shell | No |
| Filter Feature | No |
| Flammability Rating | UL94 V-2 |
| Gender | Female |
| Housing Color | Natural |
| IEC Conformance | No |
| Insulation | Insulated |
| Insulation Material | Nylon |
| Length | 32.38mm |
| Manufacturer Series | 480004 |
| Material | Nylon |
| MIL Conformance | No |
| Mixed Contacts | No |
| Mount | Free Hanging, Cable |
| Number of Circuits | 6 |
| Number of Contacts | 6 |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Option | General Purpose |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Fastin-Faston |
| Shell Material | Polyamide |
| Tab Width | 6.35mm |
| Termination | Quick Connect |
| Width | 32.38mm |
| RoHS | Compliant |
