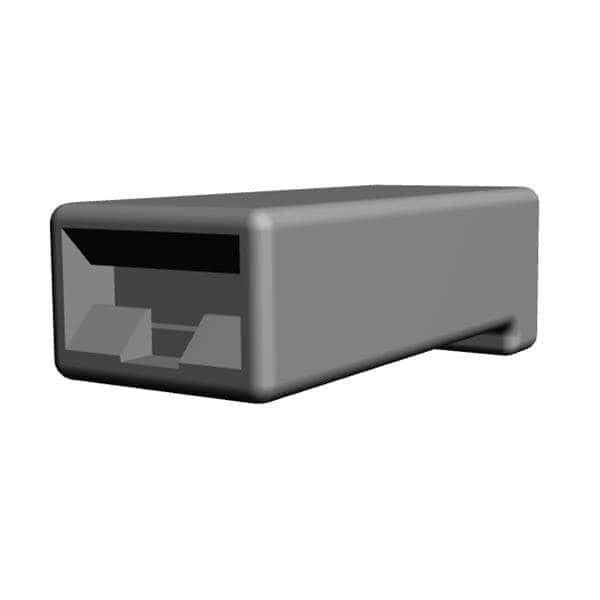

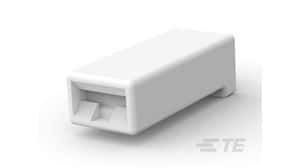

1-position, 1-row, female receptacle connector with straight orientation. Nylon housing in natural color, UL94 V-2 flammability rating, and insulated construction. Features quick connect termination and mating retention. Designed for free hanging, cable mounting applications.
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 480054-3 technical specifications.
General
| Body Material | Nylon |
| Body/Shell Style | RECEPTACLE |
| Color | Natural |
| Contact Gender | Female |
| Depth | 24mm |
| DIN Conformance | No |
| ELV | Compliant |
| Empty Shell | Yes |
| Filter Feature | No |
| Flammability Rating | UL94 V-2 |
| Gender | Receptacle |
| Housing Color | Natural |
| IEC Conformance | No |
| Insulation | Insulated |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Length | 24mm |
| Manufacturer Series | 480054 |
| Material | Nylon |
| Mating Retention | Yes (With) |
| MIL Conformance | No |
| Mixed Contacts | No |
| Mount | Free Hanging, Cable |
| Number of Circuits | 1 |
| Number of Contacts | 1 |
| Number of Positions | 1 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Fastin-Faston |
| Shell Material | Nylon |
| Termination | Quick Connect |
| Width | 9.98mm |
Compliance
| RoHS | Compliant |
