Rectangular connector housing with 4 positions and 80 total positions, featuring a 2.54mm pitch and 2.54mm row spacing. This straight, female, cable mount housing is constructed from black polyester with a UL94 V-0 flammability rating. It supports a 1.5A current rating and 100V voltage rating, with gold-plated bronze contacts. Designed for through-hole, solder termination, this housing operates between -55°C and 105°C.
Voltage Rating100V
Current Rating1.5A
MountingThrough Hole, Solder
Quick Jump:
Technical Specifications
TE Connectivity 487545-1 technical specifications.
General
Board Standoff
Yes (With)
Color
Black
Contact Material
Bronze
Contact Mating Length
8.08mm
Contact Plating
Gold
Contact Post Length
2.29mm
Contact Protection
No (Without)
Contact Shape
Square
Current Rating
1.5A
Depth
14.85mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gasket
No (Without)
Gender
Female
High Speed Serial Data Connector
No
High Temperature Compatible
No
High Temperature Housing
No
Housing Color
Black
Keyed
No
Lead Free
Lead Free
Length
6.17mm
Material
Polyester
Mating Alignment
No (Without)
Mating Connector Lock
No (Without)
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole, Solder
Number of Contacts
4
Number of Positions
80
Number of Rows
2
Orientation
Straight
Package Quantity
1000
Packaging
Bulk
PCB Mount Retention
Without
PCB Mounting Orientation
Vertical
Pitch
2.54mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Row Spacing
2.54mm
Sealable
No (Without)
Selectively Loaded
Yes (With)
Series
AMPMODU System 50
Stabilizers
No (Without)
Strain Relief
No (Without)
Termination
Solder
Underplate Material
Nickel
Voltage Rating
100V
Width
14.86mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 487545-1 Datasheet
Download the complete datasheet for TE Connectivity 487545-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

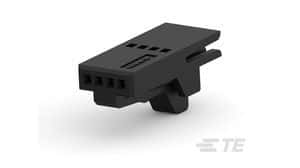

Product Images
