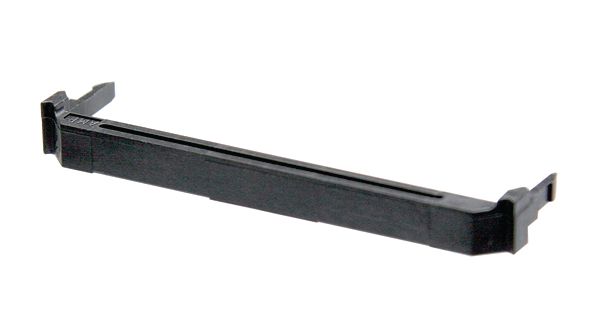

Connector accessory, strain relief, straight orientation, black thermoplastic body. Features 26 contacts with gold-plated bronze contacts. UL94 V-0 flammability rating, CSA approved, and RoHS compliant. Designed for ribbon wire/cable, with dimensions of 37.85mm length, 14.76mm height, and 6.09mm depth. Packaged in boxes of 500.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity 499252-3 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TE Connectivity 499252-3 technical specifications.
| Approvals | CSA |
| Body Material | Thermoplastic |
| Color | Black |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Depth | 6.09mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Height | 14.76mm |
| Lead Free | Lead Free |
| Length | 37.85mm |
| Material | Thermoplastic |
| Number of Contacts | 26 |
| Number of Positions | 26 |
| Number of Ways | 26 |
| Orientation | Straight |
| Package Quantity | 500 |
| Packaging | Box |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | AMP-LATCH |
| Width | 0.2402inch |
| Wire/Cable Type | Ribbon |
| RoHS | Compliant |
