5-103956-5

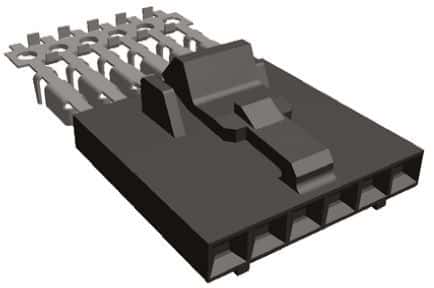

6-position, 1-row wire-to-board header receptacle with 2.54mm pitch. Features female socket contacts made of bronze with tin plating, rated for 3A current. Straight, cable mount orientation with IDC termination, supporting discrete wire gauges from 26 to 22AWG. Black housing with UL94 V-0 flammability rating, operating temperature range of -65°C to 105°C, and 267V operating voltage. Includes mating alignment, connector lock, mating retention, and strain relief.
