5-104068-9

Datasheet

14 Pos 1.27mm Shrouded Header, Straight, Thru-Hole, 1A, 30V

TE Connectivity

5-104068-9

Name: 5-104068-9 TE Connectivity
Brand: TE Connectivity
SKU: 5-104068-9

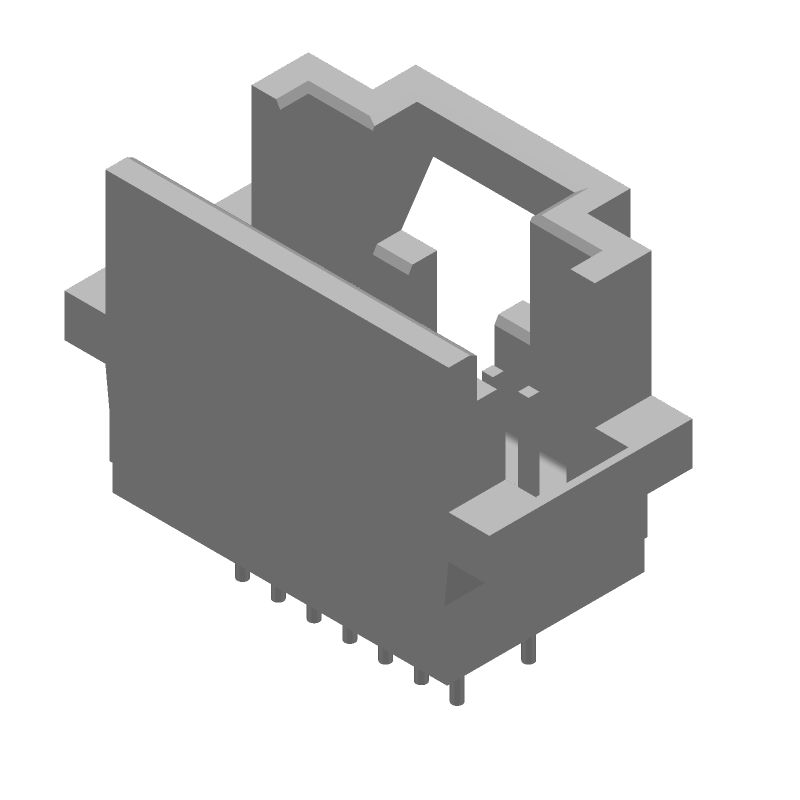

14 Pos 1.27mm Shrouded Header, Straight, Thru-Hole, 1A, 30V

14-position shrouded header with a 1.27mm pitch, designed for board-to-board applications. Features straight, through-hole termination with a 0.050" contact type and copper alloy contacts plated with gold and tin. Offers a 1A contact current rating and 30V AC voltage rating, operating between -65°C and 105°C. Includes mating alignment, mating connector lock, and board standoff, with a black housing and UL94 V-0 flammability rating.

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 5-104068-9 technical specifications.

General

Approvals	CSA
Board Standoff	Yes (With)
Color	Black
Contact Current Rating	1A
Contact Material	Copper Alloy
Contact Mating Length	0.1inch
Contact Plating	Gold, Tin
Contact Post Length	0.1inch
Contact Protection	Yes (With)
Contact Shape	Round
Contact Type	0.050" (1.27mm)
Depth	8.73mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gasket	No (Without)
Housing Color	Black
Keyed	No
Length	15.1mm
Mating Alignment	Yes (With)
Mating Connector Lock	Yes (With)
Max Operating Temperature	105°C
Min Operating Temperature	-65°C
Max Voltage Rating (AC)	30V
Mount	Through Hole
Number of Contacts	14
Number of Positions	14
Number of Rows	2
Orientation	Straight
Package Quantity	34
Packaging	Rail/Tube
PCB Mount Retention	Without
PCB Mounting Orientation	Vertical
PCB Thickness	1.397mm
Pitch	0.05inch
Radiation Hardening	No
RoHS Compliant	Yes
Row Spacing	2.54mm
Selectively Loaded	No (Without)
Series	AMPMODU System 50
Stabilizers	No (Without)
Strain Relief	No (Without)
Termination	Through Hole
Voltage Rating (AC)	30V
