5-104652-4

Datasheet

TE Connectivity

5-104652-4

Name: 5-104652-4 TE Connectivity
Brand: TE Connectivity
SKU: 5-104652-4

Active

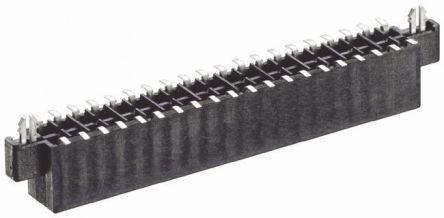

40 Pos 1.27mm Socket Header, Straight SMD, 4A, Gold

40-position, 2-row shrouded receptacle socket strip with a 1.27mm pitch. Features gold-plated copper alloy contacts with a 4A current rating and 762nm plating thickness. Surface mount termination with vertical PCB mounting orientation and a straight orientation. Constructed with a black polymer housing and insulation, rated UL94 V-0 for flammability, and operates within a -65°C to 105°C temperature range. Compliant with RoHS and ELV standards.

Voltage Rating30V

Current Rating4A

MountingSurface Mount

Quick Jump:

Pricing & Availability

Checking distributor stock and pricing after the page loads.

Chat with Datasheet

Technical Specifications

General

Approvals	CSA
Boss	No (Without)
Contact Current Rating	4A
Contact Finish - Mating	GOLD
Contact Material	Copper Alloy
Contact Plating	Gold, Tin
Contact Shape	Square
Contact Style	Socket
Contact Type	Female Socket
Current Rating	4A
Depth	3.05mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Receptacle
Height	0.187inch
Housing Color	Black
Insulation Color	Black
Insulation Material	Polymer
Lead Free	Lead Free
Length	29.87mm
Mated Stacking Heights	9.91mm
Mating Alignment	Yes (With)
Mating Connector Lock	No (Without)
Max Operating Temperature	105°C
Min Operating Temperature	-65°C
Max Voltage Rating (AC)	30V
Mount	Surface Mount
Number of Contacts	40
Number of Positions	40
Number of Rows	2
Operating Supply Voltage	30V
Orientation	Straight
Package Quantity	17
Packaging	Rail/Tube
PCB Mount Retention	With
PCB Mounting Orientation	Vertical
Pitch	0.05inch
Plating	Gold
Plating Thickness	762nm
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Row Spacing	0.05inch
Series	AMPMODU 50/50 Grid
Termination	SMD/SMT
Underplate Material	Nickel
Voltage Rating	30V
