RF Coaxial Connector, Male, Straight, 50 Ohm Impedance, operating frequency 0 to 4 GHz, with a maximum frequency of 4GHz. Features brass center contact with gold plating, zinc body with nickel plating, and Polymethylpentene dielectric/insulation. Crimp termination, 500 mating cycles, 500V voltage rating. Operating temperature range of -55°C to 85°C.
Frequency4GHz
Package316
Voltage Rating500V
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 5-1634500-1 technical specifications.
General
Body Material
Zinc
Body Plating
Nickel
Package/Case
316
Center Contact Plating
Gold
Contact Material
Brass
Contact Plating
Gold
Depth
13.7mm
Dielectric Material
Polymethylpentene
ELV
Compliant
Gender
Male
Housing Color
Silver
Impedance
50R
Insertion Loss
0.2dB
Insulation Material
Polymethylpentene
Lead Free
Not Applicable
Length
24.7mm
Mating Cycles
500
Max Frequency
4GHz
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Mount
Free Hanging, Cable
Number of Ports
1
Number of Positions
1
Operating Frequency
0 to 4 GHz
Orientation
Straight
Package Quantity
100
Packaging
Bag
Plating
Nickel
Polarity
Normal
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
ZDC, Greenpar
Termination
Crimp
Voltage Rating
500V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5-1634500-1 Datasheet
Download the complete datasheet for TE Connectivity 5-1634500-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

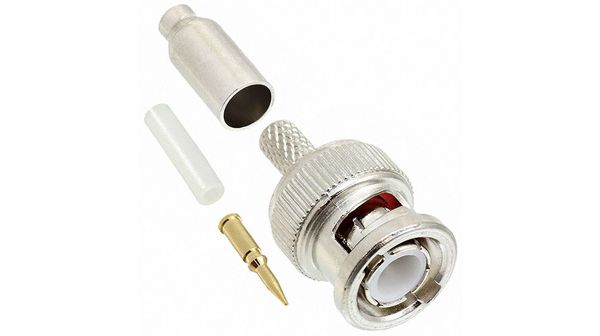

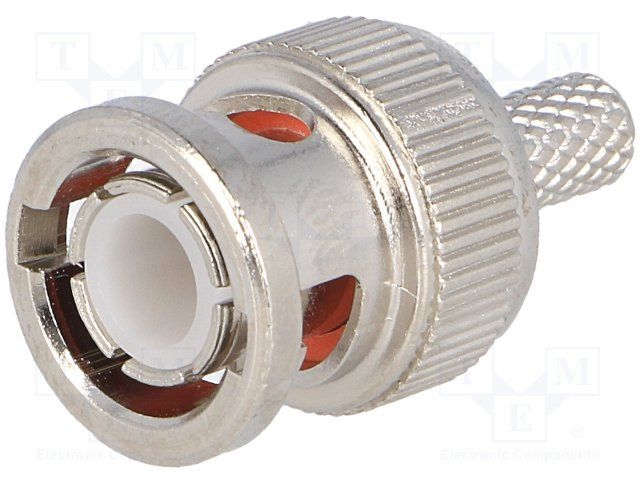

Product Images
