5-1634503-1

Datasheet

BNC Straight PCB Socket, 50 Ohm, Gold Contact, Nickel Body

TE Connectivity

5-1634503-1

Name: 5-1634503-1 TE Connectivity
Brand: TE Connectivity
SKU: 5-1634503-1

Active

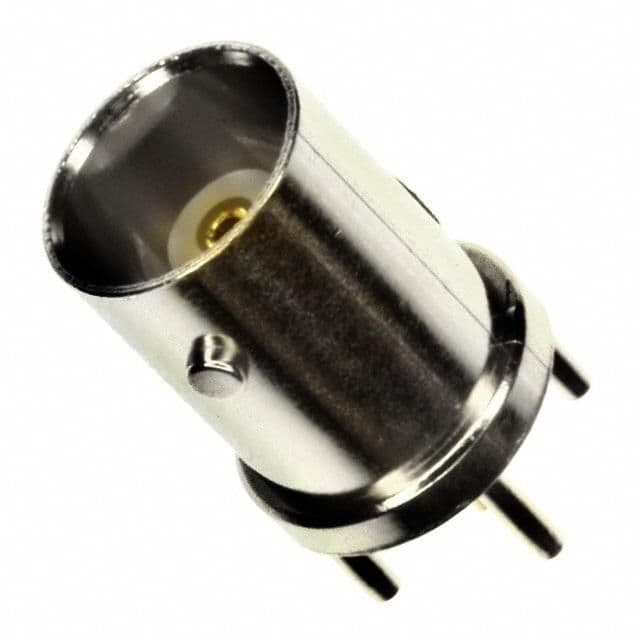

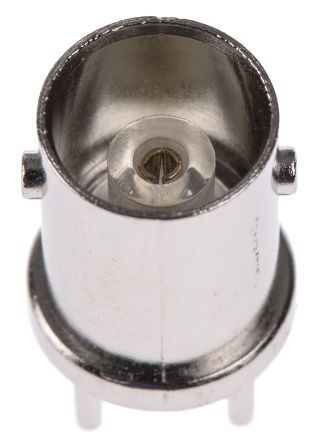

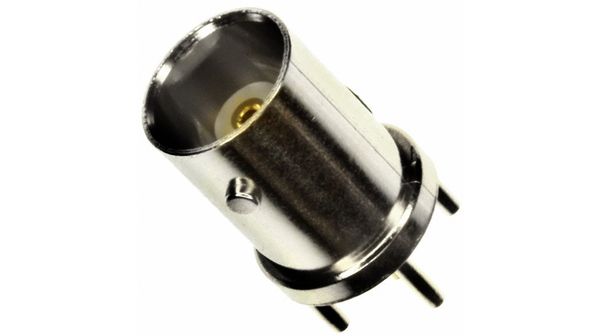

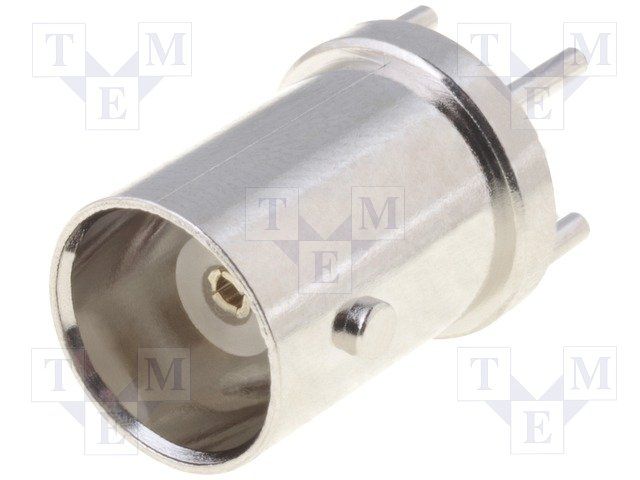

BNC Straight PCB Socket, 50 Ohm, Gold Contact, Nickel Body

This straight, female RF coaxial connector is designed for cable-to-board applications, featuring a 50 Ohm impedance and a maximum operating frequency of 4 GHz. Constructed with a zinc body plated in nickel and a gold-plated bronze center contact, it offers a robust connection for up to 500 mating cycles. The connector mounts to PCBs via through-hole termination with solder, utilizing a polymethylpentene dielectric. Operating across a temperature range of -67°C to 185°C, this RoHS compliant component is suitable for demanding environments.

Frequency4GHz

Voltage Rating500V

MountingPCB, Through Hole

PolarityStandard, Normal

Quick Jump:

Pricing & Availability

Checking distributor stock and pricing after the page loads.

Chat with Datasheet

Technical Specifications

General

Body Material	Zinc
Body Plating	Nickel
Center Contact Plating	Gold
Connector System	Cable-to-Board
Contact Material	Bronze
Contact Plating	Gold
Depth	11mm
Dielectric Material	Polymethylpentene
ELV	Compliant
Frequency	4GHz
Gender	Female
Housing Color	Silver
Impedance	50R
Insulation Material	Polymethylpentene
Length	13.7mm
Mating Cycles	500
Max Frequency	4GHz
Max Operating Temperature	185°C
Min Operating Temperature	-67°C
Mount	PCB, Through Hole
Number of Contacts	1
Number of Ports	1
Number of Positions	1
Operating Frequency	0 to 4 GHz
Orientation	Straight
Outside Diameter	14.529mm
Package Quantity	50
Packaging	Box
PCB Mount Retention	With
PCB Thickness	0.126inch
Polarity	Standard, Normal
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Sealable	No (Without)
Series	ZDC, Greenpar
Tail Length	0.177inch
Termination	Solder
Voltage Rating	500V
DC Rated Voltage	500V
