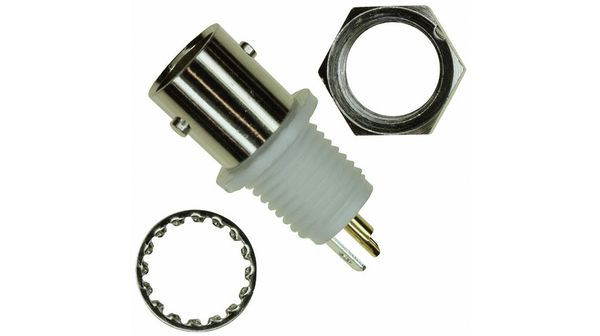

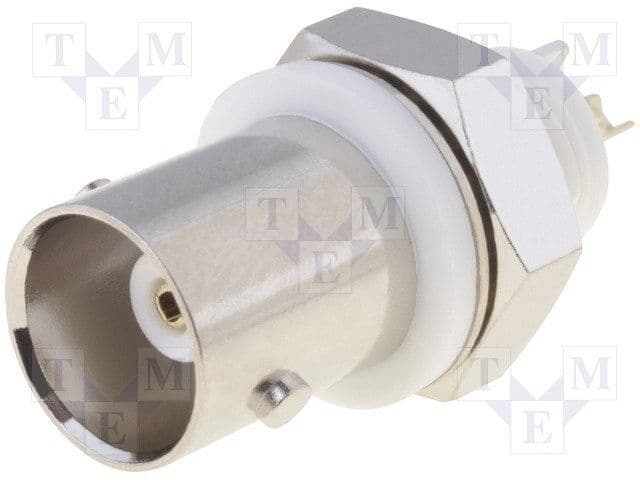

RF coaxial connector, female, straight orientation, panel mount. Features a 50 Ohm impedance and operates up to 4 GHz. Constructed with a zinc body plated in nickel, and gold-plated bronze center contacts. Dielectric and insulation materials include PBT and polyester respectively. Rated for 500V and 500 mating cycles, with a temperature range of -55°C to 85°C.
Frequency4GHz
Voltage Rating500V
MountingPanel
PolarityNormal
Quick Jump:
Technical Specifications
TE Connectivity 5-1634504-1 technical specifications.
General
| Body Material | Zinc |
| Body Plating | Nickel |
| Center Contact Plating | Gold |
| Color | White |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Depth | 12.35mm |
| Dielectric Material | PBT |
| ELV | Compliant |
| Flange Diameter | 12.7mm |
| Frequency | 4GHz |
| Gender | Female |
| Housing Color | White |
| Impedance | 50R |
| Insulation Material | Polyester |
| Length | 26.9mm |
| Mating Cycles | 500 |
| Max Frequency | 4GHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Panel |
| Number of Ports | 1 |
| Number of Positions | 1 |
| Operating Frequency | 0 to 4 GHz |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bulk |
| PCB Mount Retention | Without |
| Plating | Nickel |
| Polarity | Normal |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | ZDC, Greenpar |
| Termination | Solder |
| Voltage Rating | 500V |
Compliance
| RoHS | Compliant |
