Tee-style RF coaxial adapter with 50 Ohm impedance, featuring a male to female gender configuration. Constructed with a brass center contact and copper body, both plated with gold for optimal conductivity. The adapter utilizes polyethylene dielectric material and offers a free-hanging mount. Operating frequency range extends from 0 to 4 GHz, with a nickel body plating and gold center contact plating.
Frequency0 to 4 GHz
MountingFree Hanging
PolarityNo
Quick Jump:
Technical Specifications
TE Connectivity 5-1634532-1 technical specifications.
General
| Body Plating | Copper |
| Center Contact Plating | Gold |
| Contact Material | Brass |
| Contact Plating | Gold |
| Depth | 32.5mm |
| Dielectric Material | PE |
| ELV | Compliant |
| Gender | Male |
| Gender Type A | Female |
| Gender Type B | Male |
| Impedance | 50R |
| Insulation Material | Polyethylene |
| Lead Free | Not Applicable |
| Length | 27mm |
| Mount | Free Hanging |
| Number of Ports | 1 |
| Operating Frequency | 0 to 4 GHz |
| Orientation | Tee Style |
| Packaging | Tray |
| Plating | Nickel |
| Polarized | No |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | Greenpar |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 5-1634532-1 Datasheet
Download the complete datasheet for TE Connectivity 5-1634532-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

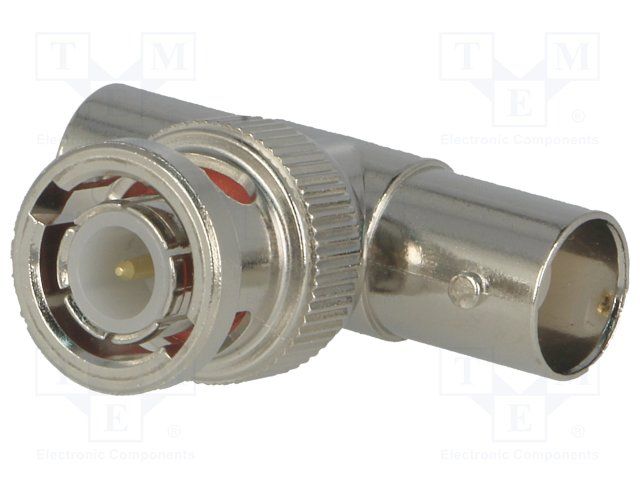

Product Images
