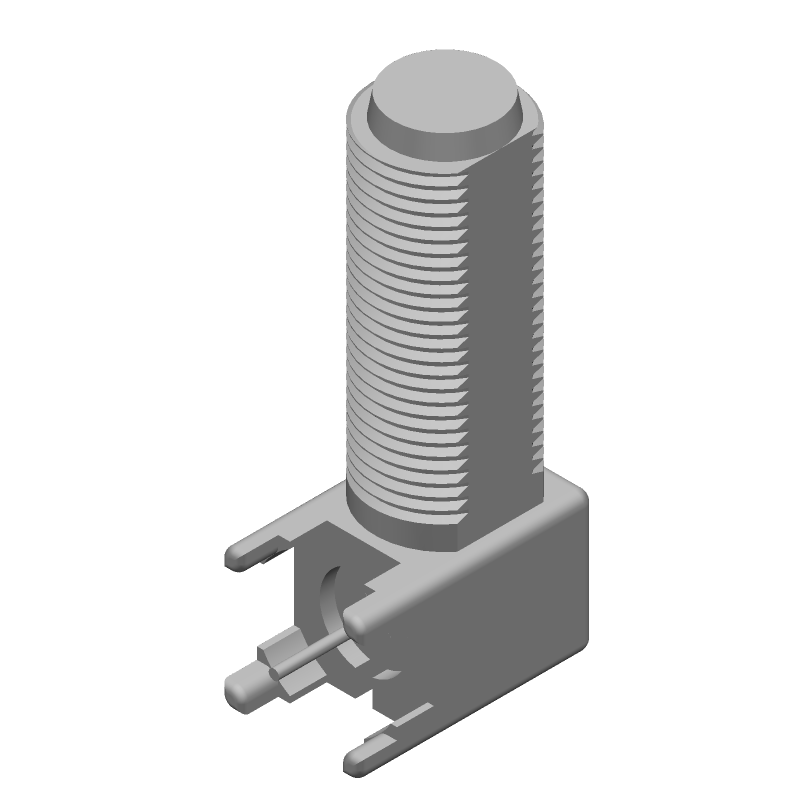

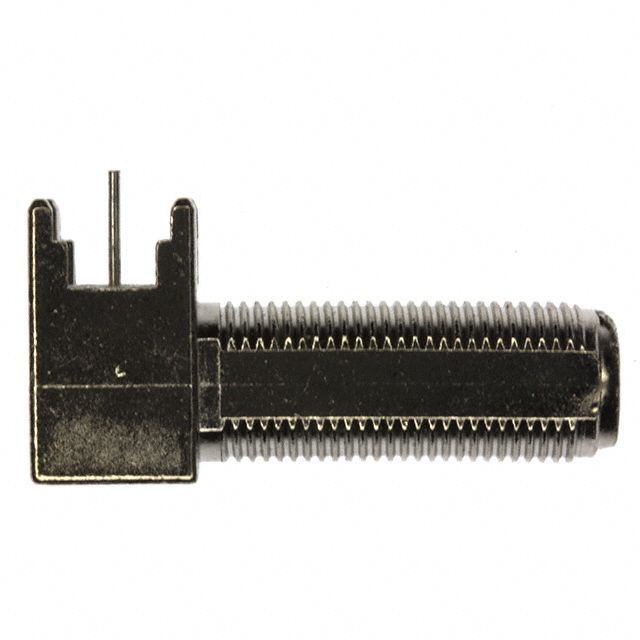

Right-angle RF coaxial connector, designed for cable-to-panel applications. Features a 50 Ohm impedance and operates from DC to 2 GHz, with a maximum operating frequency of 1 GHz. Constructed with a nickel-plated brass body, tin-plated center contact, and polyethylene dielectric. This surface-mount device (SMD/SMT) connector offers a 500V voltage rating and a maximum operating temperature of 185°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity 5-1634552-1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Body Plating | Nickel |
| Package/Case | SMD/SMT |
| Center Contact Plating | Tin |
| Connector System | Cable-to-Panel |
| Contact Material | Bronze |
| Contact Plating | Copper, Tin |
| Depth | 33.2mm |
| Dielectric Material | Polymethylpentene |
| ELV | Compliant |
| Frequency | 2GHz |
| Gender | Male |
| Housing Color | Silver |
| Impedance | 50R |
| Insulation Material | Polyethylene |
| Length | 9.5mm |
| Max Frequency | 1GHz |
| Max Operating Temperature | 185°C |
| Min Operating Temperature | -67°C |
| Mount | Through Hole, Panel, Bulkhead, Front Side Nut, Surface Mount, PCB |
| Number of Ports | 1 |
| Number of Positions | 1 |
| Operating Frequency | 0 to 2 GHz |
| Orientation | Right Angle |
| Package Quantity | 1 |
| Packaging | Box |
| Polarity | Normal |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | ZDC, Greenpar |
| Tail Length | 0.263inch |
| Termination | SMD/SMT |
| Voltage Rating | 500V |
| RoHS | Compliant |
